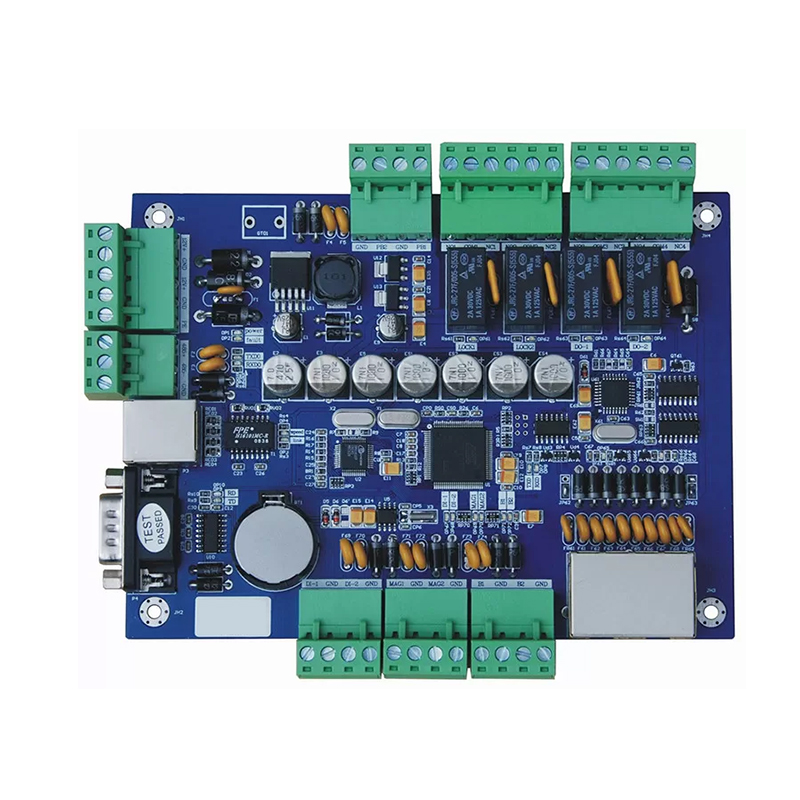

Electronic Customized Home Appliance PCBA Beauty Device PCB Prototype Manufacturing OEM Circuit Board Supplier
Product Description
We offer competitive budget pricing for everyone. Whether you’re a geek looking for the latest electronics or a shopper seeking network products for home, office, or outdoor use, we provide light-speed service and the best wireless or wired network solutions.
Our professional quality control system ensures all products are original and maintain the highest standards. Our technical team provides perfect network solutions focusing on every detail.
We serve customers from virtually every country in the world, with the goal of serving everyone worldwide.
From prototyping to volume production, we provide a broad range of printed circuit board assembly and manufacturing services. Our services include designing, prototyping, New Product Introduction (NPI), supply chain management, and assembly of a wide range of PCBs.
We also provide BGA reworking, conformal coating, IC programming, X-ray inspection, in-circuit testing (ICT), automated optical inspection, cable and wire harness assembly, Box Build assembly, and more. All assemblies follow industry standards and are RoHS compliant.
Prototype assemblies help you visualize the final product, helping to eliminate design errors early and reduce overall manufacturing costs.
- Quickturn Prototypes
- Full Turnkey & Semi-turnkey Solutions
- Consignment & Large Volume Production
- Thru-Hole Technology & Material Management
- Medical Device Production
- BGA and Micro BGA Technology
- Design for Manufacturability (DFM)
- 3D Printing of Prototypes
- ROHS Compliance (Lead-Free)
- Flex & Rigid Flex Assembly
- Mechanical/System Assembly & Testing
| Work Flow Steps | Order Quantity | PCB Lead Time | Assembly Time |
|---|---|---|---|
|

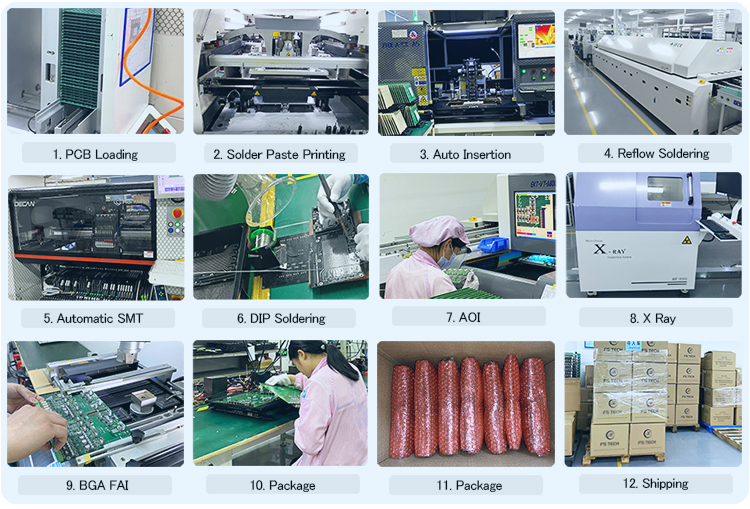

1. Send Gerber & BOM files 2. Quote within 24 hours 3. Confirm PO & Payment 4. Procurement of PCB & BOM 5. Internal Data Review 6. IQC Material Inspection 7. Production (2-5 days) 8. Inspection (AOI, X-Ray) 9. Global Shipping |
Qty < 50 | 7 Days | 2 Days |
| 50 < Qty < 100 | 10 Days | 5 Days | |
| 100 < Qty < 1000 | 12 Days | 7 Days | |
| 1000 < Qty < 10K | 17 Days | 9 Days |

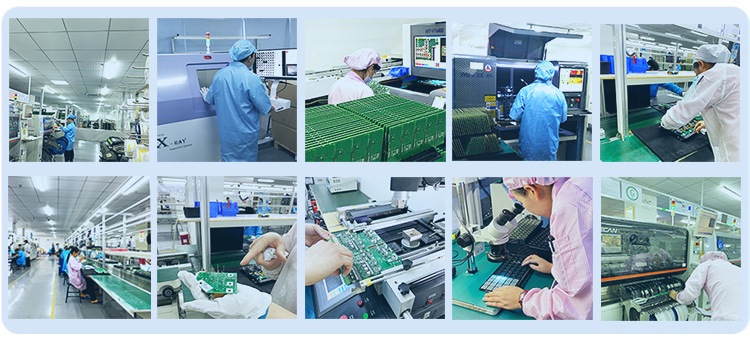

A Leading Provider Of Fully Turnkey PCB Assembly Services
| Capability | Standard |
|---|---|
| Certifications | ISO 9001:2015, ISO14001, IPC, UL, Reach, ROHS |
| Lead Time | 1-5 Days (Scheduled) |
| Parts Procurement | Full Turnkey, Partial Turnkey, Kitted |
| Assembly Types | SMT, Through-hole, Mixed, Single/Double-sided |
| Components | Smallest 01005, Fine pitch 8 Mils |
| Inspection | X-ray, AOI, Microscope to 20X |
| PCB Finish | HASL, Immersion Gold/Silver/Tin, OSP |
| Rework | BGA removal & replacement, SMT IR rework |

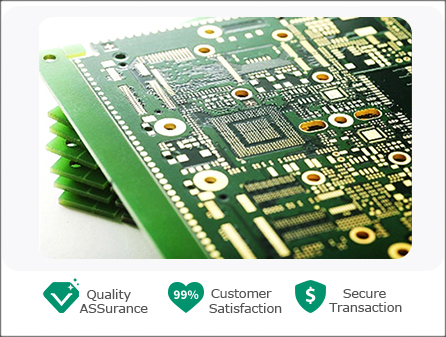

PCB Manufacturing
Full-feature production: Rigid FR4, HDI, FPC, Aluminum, and Rogers PCBs. High reliability compatible with your specific requirements.
- Expanded manufacturing capabilities
- Rigorous quality control
- Free DFM checks
PCB Assembly
One-stop turnkey services covering fabrication, parts sourcing, and SMT/THT assembly. Flexibly combined to meet budget and schedule.
- 01005, 0.4mm pitch BGA
- AOI, X-ray, Flying probe testing
- Box build & IC programming
What files do I need to provide for a PCB assembly quote?
To provide an accurate quote, we require your Gerber files for PCB fabrication and a complete Bill of Materials (BOM) for component sourcing.
How long does the typical PCB assembly take?
Assembly time varies by quantity. Small batches (under 50 units) typically take 2 days after materials are ready, while larger orders (up to 10k) may take around 9 days.
Are your PCB services RoHS compliant?
Yes, we provide lead-free and RoHS compliant assembly processes to meet international environmental standards.
What testing and inspection methods do you use?
We utilize high-end inspection technologies including Automated Optical Inspection (AOI), X-Ray inspection for BGA components, and in-circuit testing (ICT).
Can you handle fine-pitch components and BGA?
Absolutely. Our capabilities include 0.4mm pitch BGA and passive components as small as 01005, using advanced SMT technology.
Do you offer full turnkey solutions?
Yes, we offer full turnkey, partial turnkey, and kitted material handling solutions to best fit your project's supply chain needs.
