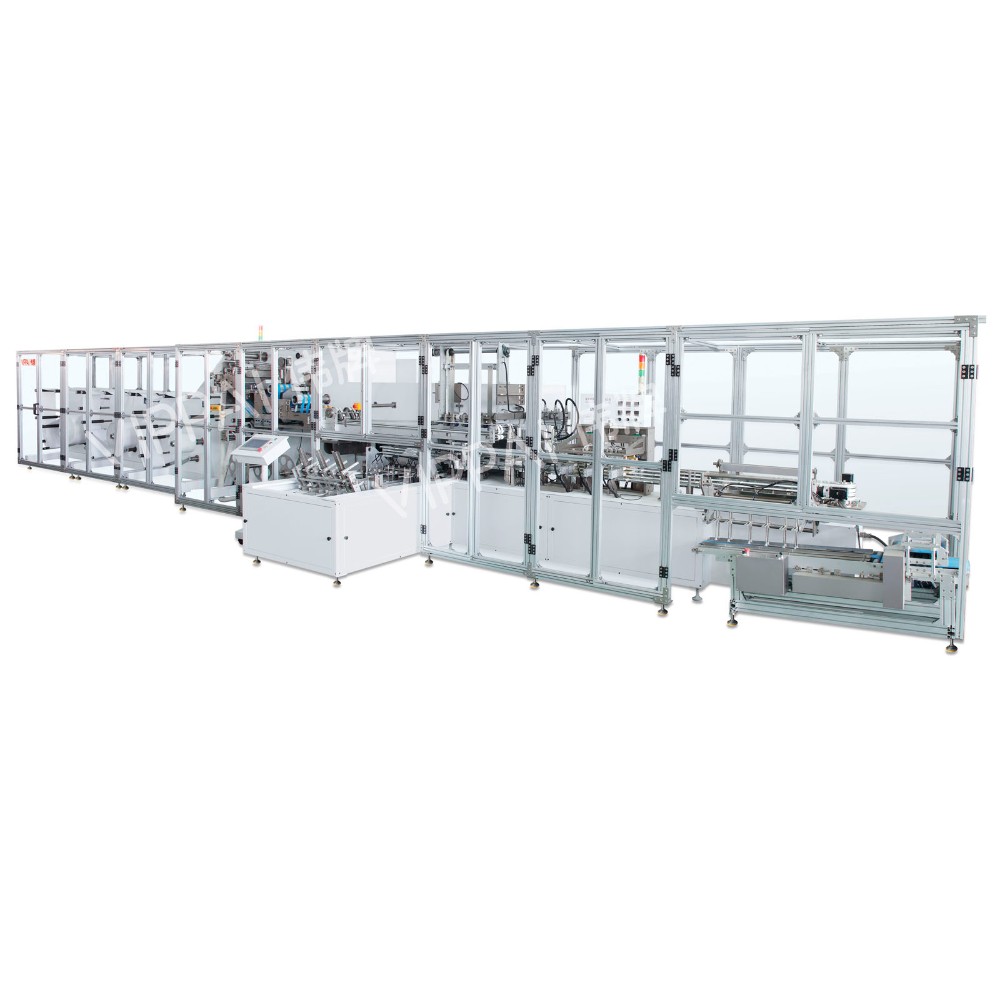

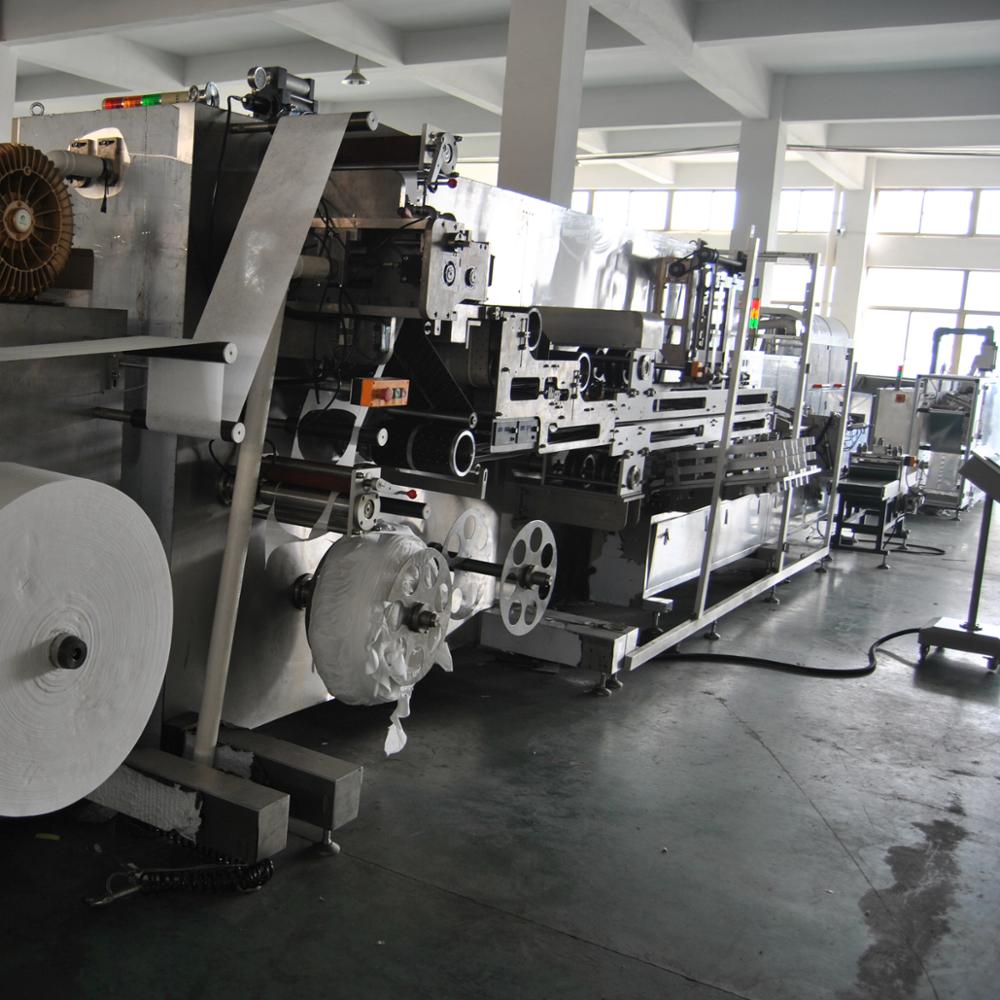

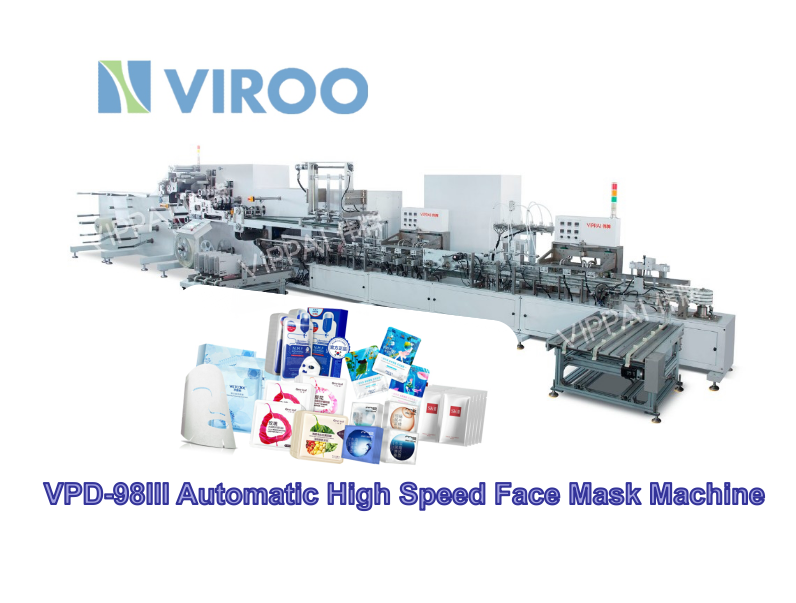

Full Automatic 3-step Skin Care Non-Woven Face Mask Production Line Making Machine
Product Description

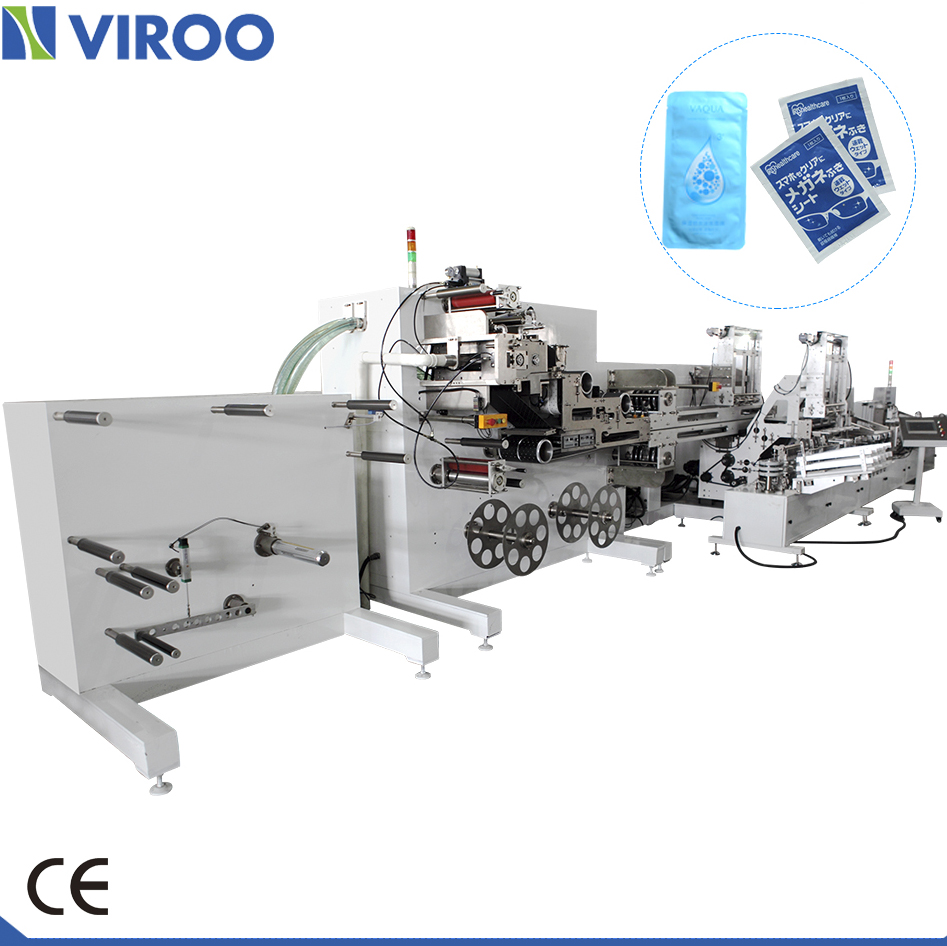

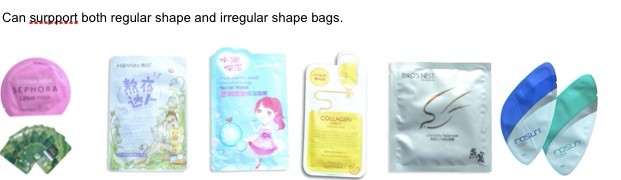

The high speed face mask packing machine is used for Prefabricated bag, adjustable bag chargers can use all kinds of special shaped bags flexibly, 3 injection heads can be independent used for Various of essence. The movable control panel operate the machine more comfortably.
| Item/Type | 3 Steps Face Mask Making Machine (Pre-made Bag) |
| Packaging Material | PET/AL/PE, OPP/AL/PE, BOPP/PE/AL/PE, PET/AL/CPP, PE/LDPE/AL/PE |
| Mask Material | Facial sheet (30-80g/m2 Spun Non-woven/Lyocell/Silk/Cotton) & Carrier sheet (Polypropylene fiber) |
| Diameter Specs | Inner diameter 75mm, Max outter diameter 1000mm |
| Die-Cut | Customized design |
| Dimension (L*W*H) | 13500mm * 2860mm * 2230mm |
| Unfolded Mask Size | L 200-260mm | W 200-260mm |
| Packing Speed | 80-110 bags/min |
| Liquid Injection | Essence fluid 0-50ml; Bag2: Fluid 0.8-2.0ml; Bag3: Fluid 0.8-2.0ml |
| Voltage & Power | 3 phase 380V 50/60HZ | 32KW |
| Air Consumption | >=2.0m3/min (0.6-1.0 Mpa) |
| Machine Weight | 11000kg |
- Material Run-out Alarm: Increased sensor switch for material rolls. Machine alarms when diameter is low and stops when materials are depleted.
- Non-woven Connection Detection: Detects and excludes mask parts containing connection tape (red color).
- Optional Stain Detection: Advanced sensors to detect grease, stains, or contaminants, automatically excluding defective masks.

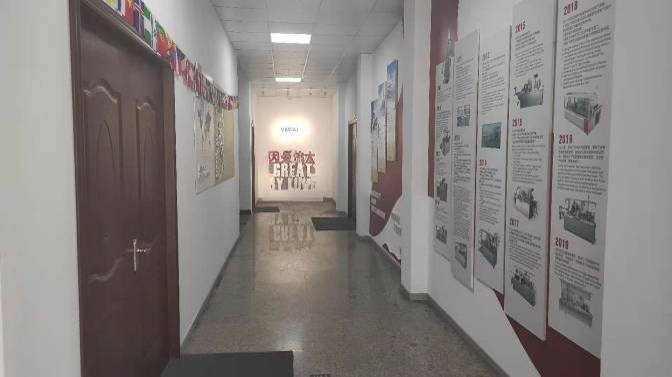

Facial Mask and Wet Wipes Machine Manufacturer since 2003. Not only provides the packing machine, but also offers the whole production line solution, including Semi-Automatic PET Bottle Blowing for comprehensive packaging needs.
What products can this machine manufacture?
The range includes Automatic Face Mask Machines, Facial Mask Production lines, Four-side Sealing Wet Tissue Packing Machines, and Case Packers.
How is the quality of the machinery guaranteed?
Quality is ensured through a strict protocol including a pre-production sample before mass production and a final inspection of every unit before shipment.

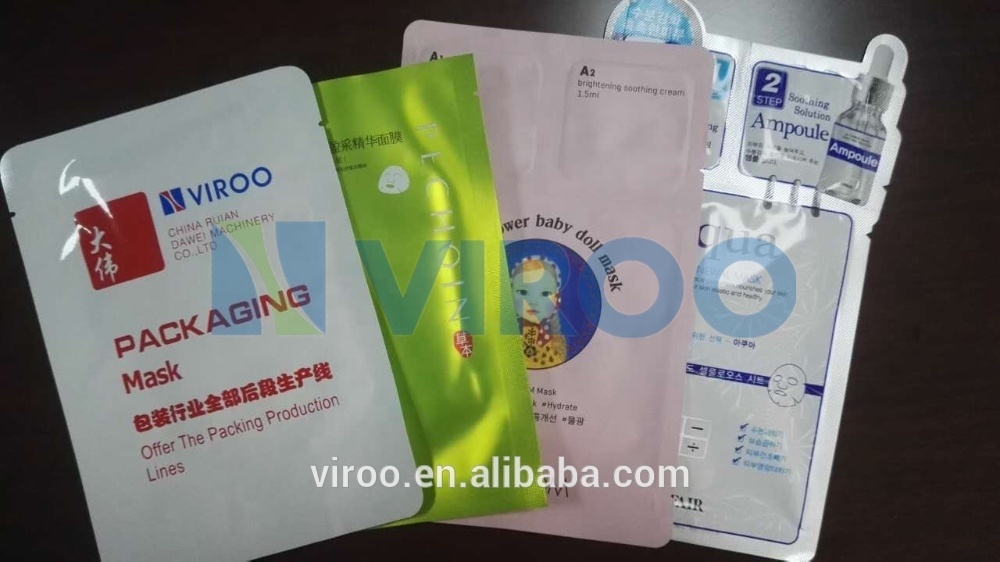

What are the supported packaging materials?
The machine supports a wide variety of materials including PET/AL/PE, OPP/AL/PE, BOPP/PE/AL/PE, PET/AL/CPP, and PE/LDPE/AL/PE.
What is the production capacity of this machine?
This high-speed model can achieve a packing speed of 80 to 110 bags per minute, depending on the material and bag specifications.
What liquid injection options are available?
The system features 3 injection heads capable of handling essence fluids from 0-50ml, with secondary and tertiary bags accommodating 0.8-2.0ml.
What delivery and payment terms are accepted?
Accepted delivery terms include FOB, CFR, and CIF. Payment can be made via T/T, L/C, D/P, or D/A in currencies such as USD, EUR, and CNY.
