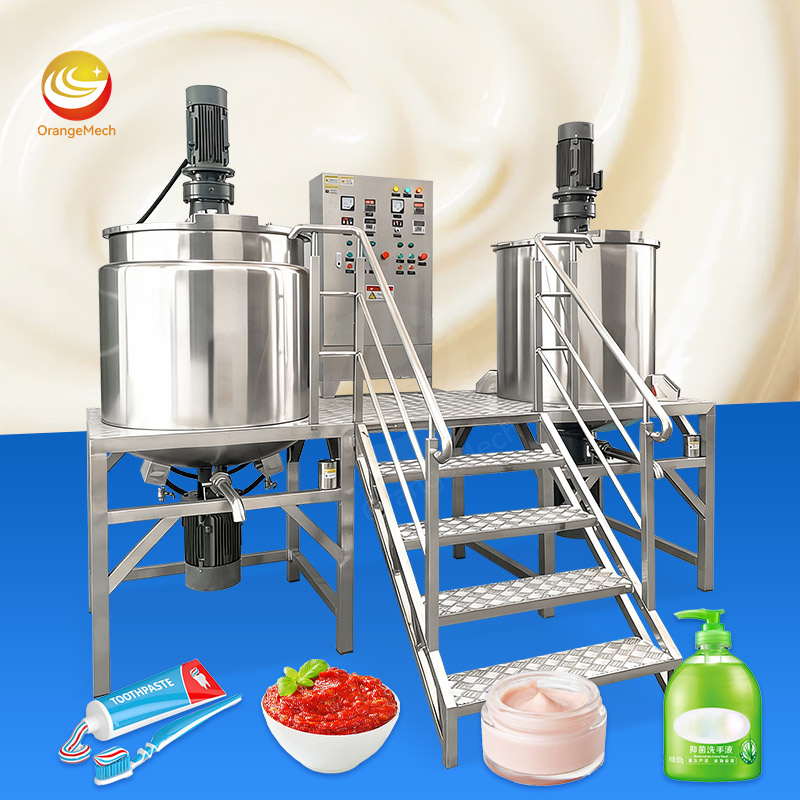

ORME Small Batch Cosmetic Beauty Cream Manufacturing Equipment Shampoo and Conditioner Make Machine
Product Description
💡 Introduction

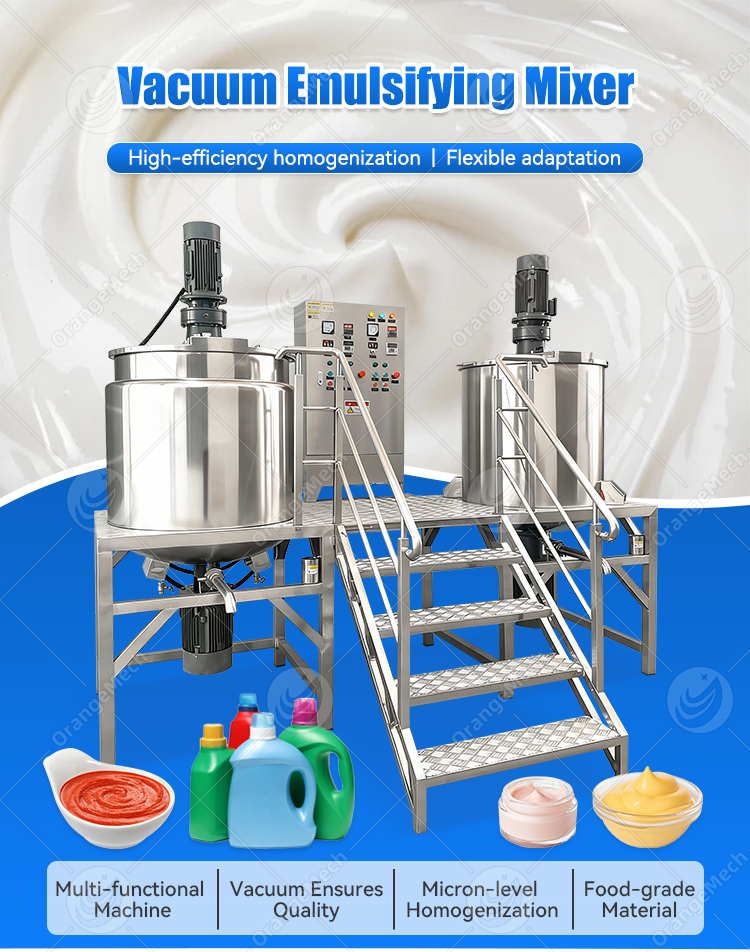

The vacuum emulsifying mixer is a professional equipment specifically engineered for highly efficient mixing, homogenization, and emulsification. Its core working principle involves a high-speed shear head (stator-rotor assembly) that generates intense mechanical force, instantly dispersing and breaking down immiscible liquids or solid particles to form an exceptionally fine and stable emulsion system. It serves as an ideal solution for the production of high-quality fluid products.
🚀 Application
The vacuum emulsifying mixer is widely used across multiple industries, including the food industry (sauces, dairy products), cosmetics sector (creams, lotions), chemical field (adhesives, coatings), and papermaking industry (pulp processing). It is suitable for various production scenarios that require high-efficiency mixing, emulsification, and homogenization processes.

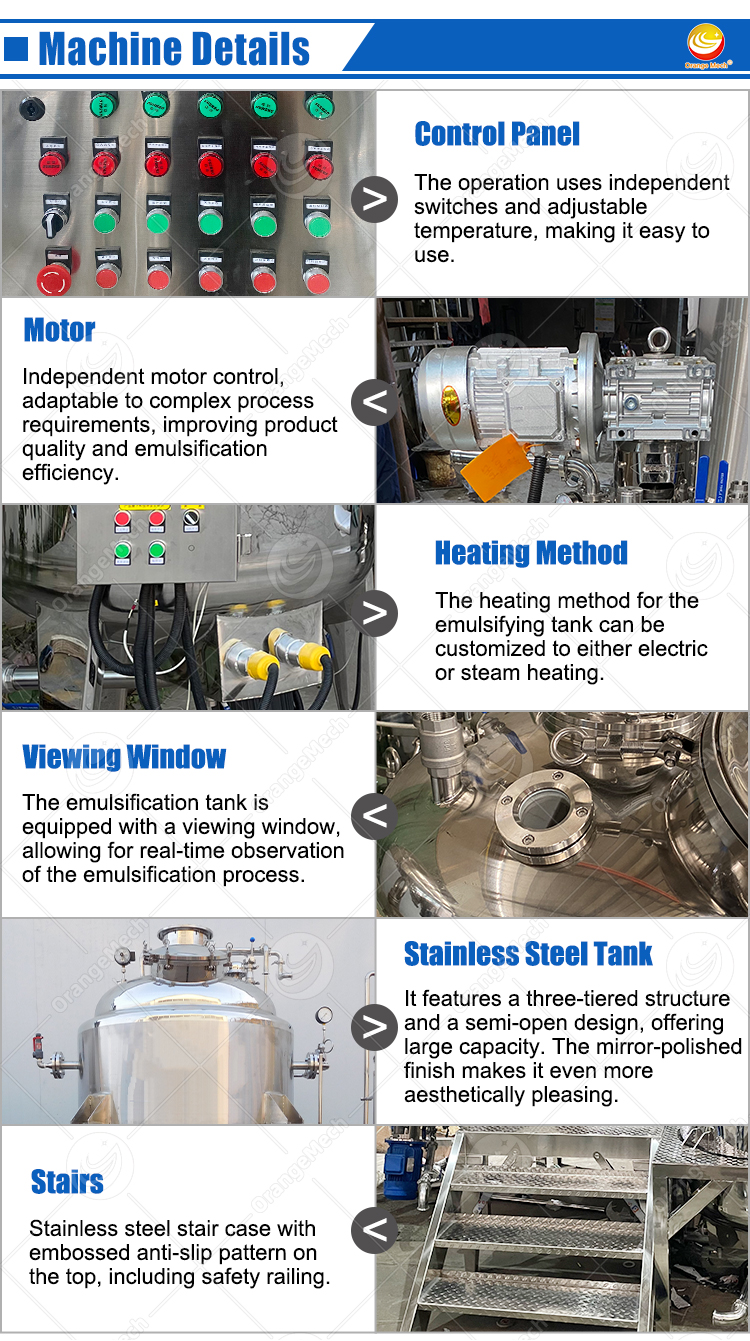

🛠️ Key Features
1. Robust & Hygienic Structure
Constructed entirely from stainless steel for corrosion resistance, durability, and easy cleaning.
2. Efficient Temperature Control System
Features a three-layer jacketed design with polyurethane insulation to ensure uniform heating, stable processing, and effective energy savings.
3. Intelligent Independent Control
Mixing and emulsification are driven by separate motors, coupled with a computerized control panel for simple operation and precise parameter adjustment.
4. Hygiene & Safety Assurance
Equipped with a breathing valve with air filter to maintain tank pressure balance and prevent contamination; built-in cleaning device supports CIP cleaning.
5. Flexible Process Adaptation
Offers optional heating methods such as electric or steam heating; includes standard inlet/outlet connections for easy integration with production lines.
6. Powerful Emulsification Performance
High-speed rotating emulsifying blades generate intense shear force, ensuring thorough material breakup and mixing for excellent emulsion fineness.
📋 Technical Specifications
| Parameter | 300L | 500L | 1000L |
|---|---|---|---|
| Voltage | 380V 50HZ customized | 380V 50HZ customized | 380V 50HZ customized |
| Control Method | Computerized control | Computerized control | Computerized control |
| Capacity | 300L/batch | 500L/batch | 1000L/batch |
| Heating Power | 18KW | 24KW | 48KW |
| Stirring Speed | 36r/min | 36r/min | 36r/min |
| Shearing Speed | 2800r/min | 2800r/min | 2800r/min |
| Material | SUS304 customized | SUS304 customized | SUS304 customized |
| Working Pressure | 0.09MPa | 0.09MPa | 0.09MPa |
✅ Certification & Quality
🌍 After-Sales Service
24-hour communication service.
Fast logistics and smooth delivery service (DDU & DDP supported).
One-year warranty and lifetime technical support.
Support for local after-sales service and staff training.
❓ FAQ
What are the main functions of the emulsifying tank?
It is primarily used to efficiently mix, shear, and homogenize immiscible materials (e.g., oil and water) to form a stable and fine emulsion.
What specific products is it suitable for?
It is ideal for liquid and paste products like salad dressings, skin creams, toothpaste, adhesives, and pulp additives.
Is the equipment easy to clean?
Yes, the smooth stainless-steel surface and optional CIP (Clean-In-Place) system make cleaning and maintenance straightforward.
How can the heating method be selected?
We offer electric heating for rapid temperature rise or steam heating for lower operating costs, depending on your site conditions.
Can it be integrated into a production line?
Yes, it features standard inlet/outlet flanges to connect easily with storage tanks and filling machines for automated production.
What level of emulsion fineness can be achieved?
With high-speed shearing, micron-level particle sizes can typically be achieved for a uniform and stable texture.
