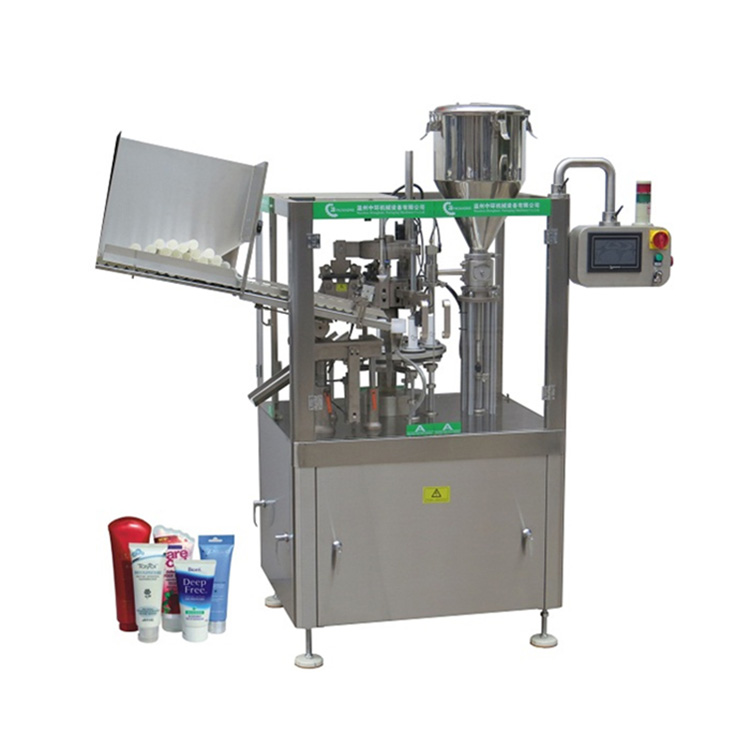

Skin Care Tube Filling and Sealing Machine or Ampoule Tube Filling and Sealing Machine
Product Description
| Technical Parameter | |
|---|---|
| Name | Facial washer tube filler and sealer |
| Model | ZHY-60YP |
| Filling Volume | 1ml-260ml/unit |
| Filling Accuracy | ≤±1% |
| Capacity | 1800-3000 units/hour (Adjustable) |
| Tube Diameter | Φ10-50mm |
| Tube Length | 260mm (Max. Length) |
| Power | 380V/220V (Optional) |
| Air Pressure | 0.5-0.7Mpa |
| Equipped Motor | 1.1kw |
| Hot Wind Power | 3.0kw |
| Dimension | 2440(L)x 900(W) x2180(H)mm |
| Hopper Volume | 40L |
| Weigh Approx | 1000kg |
This Facial Washer Tube Filler And Sealer is suitable for filling all kinds of pasty and high viscous fluid and for large diameter plastic and composite tubes and then internally heating tubes, sealing and printing lot number and date. It is used in the industries of pharmaceutics, foodstuff, cosmetic and bond and so on.
Key Features & Advantages
1
Compact design, automatic tube load and driving part fully closed.
2
Full automatic control system for loading, color coding, filling, heating, sealing, and output.
3
Pneumatic tube loading and washing, accurate and reliable.
4
Electric eye control for automatic tube center orientation.
5
316L stainless steel contact parts, completely conforming to GMP standards.
6
Safety device: machine shuts down when the door is opened; overload protection provided.
This price is for reference only. The exact price depends on the requirements of the product and trade.
Frequently Asked Questions
What types of materials can this machine fill?
It is designed for all kinds of pasty and high viscous fluids, making it ideal for cosmetic creams, ointments, and food pastes.
What tube sizes are compatible with the ZHY-60YP?
The machine supports tube diameters ranging from Φ10mm to Φ50mm and lengths up to 260mm.
Is the filling process accurate?
Yes, the filling accuracy is highly precise with a tolerance of ≤±1%.
Does this machine meet sanitary standards for pharmaceutical use?
Absolutely. All parts contacting materials are made of 316L stainless steel, ensuring it is clean, sanitary, and completely conforming to GMP standards.
What is the production capacity per hour?
The machine can produce between 1800 and 3000 units per hour, and the speed is adjustable via a transducer.
How does the sealing and printing work?
The machine uses internal heating for sealing and automatically prints the lot number and date during the process.
