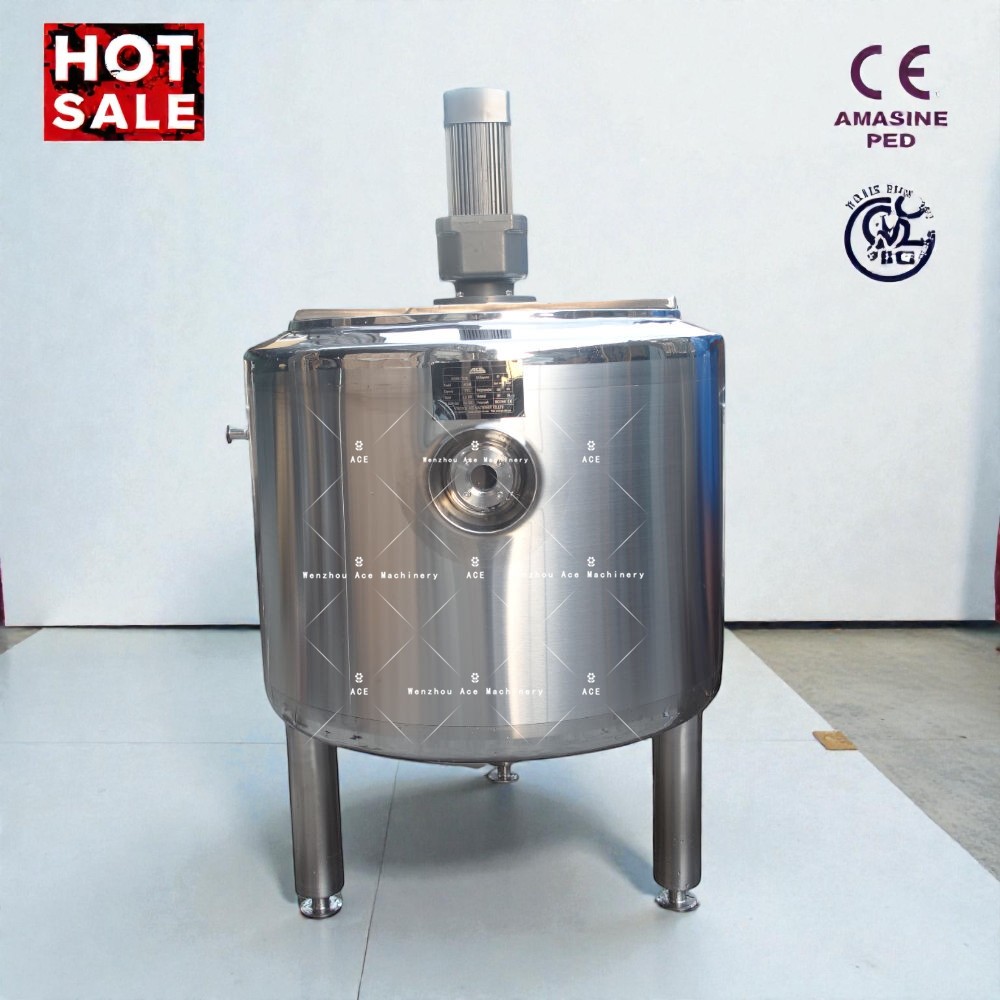

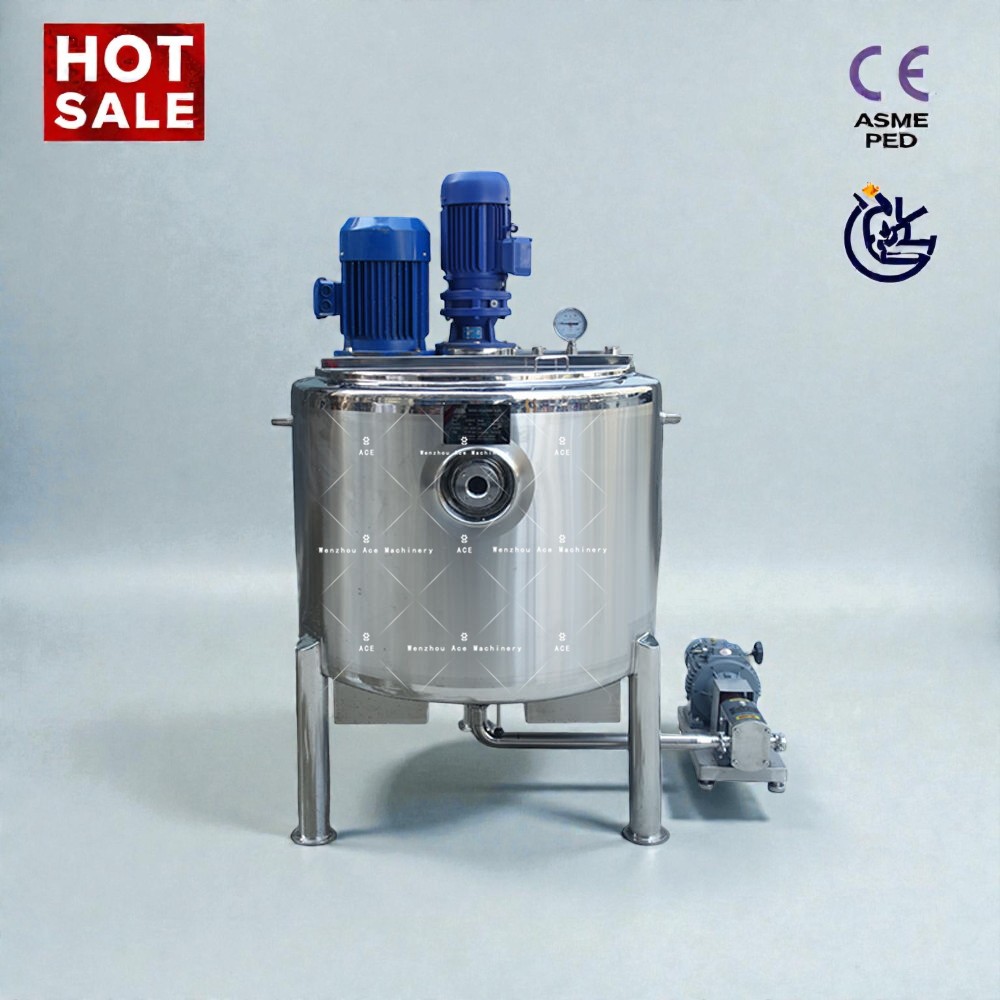

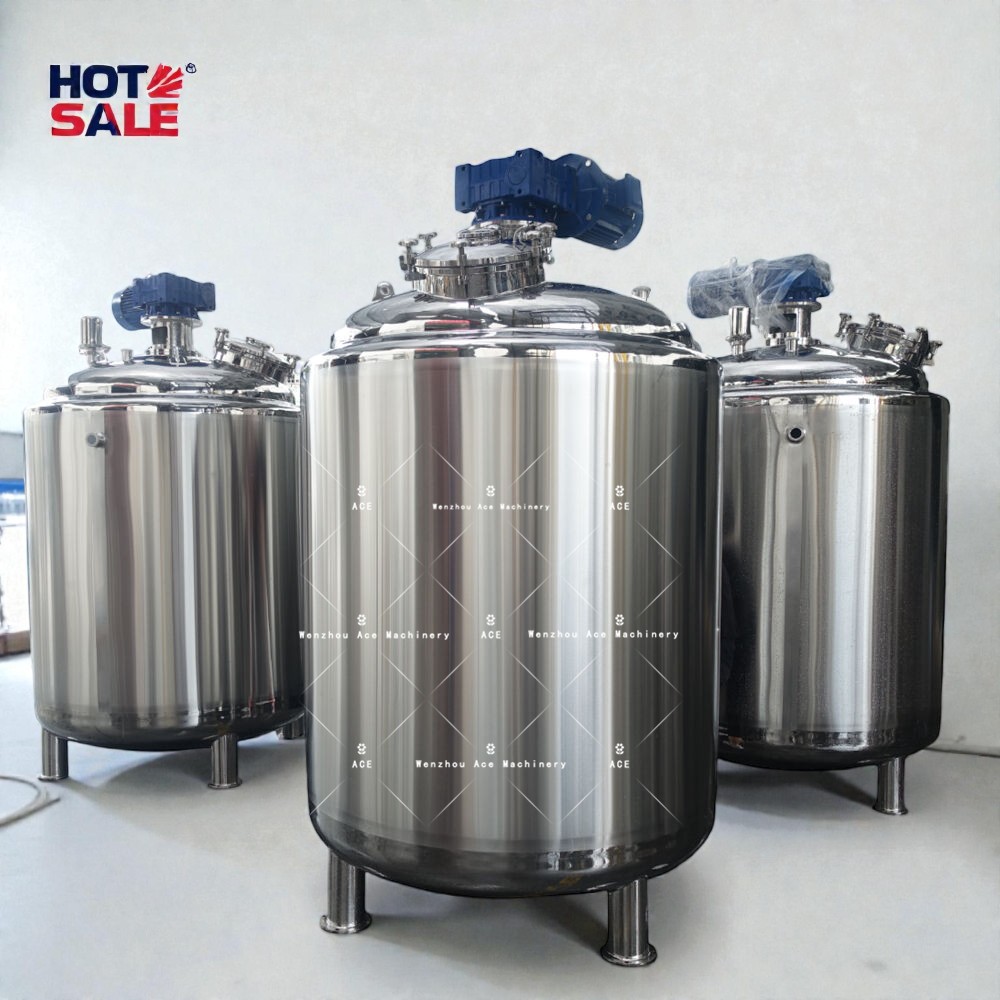

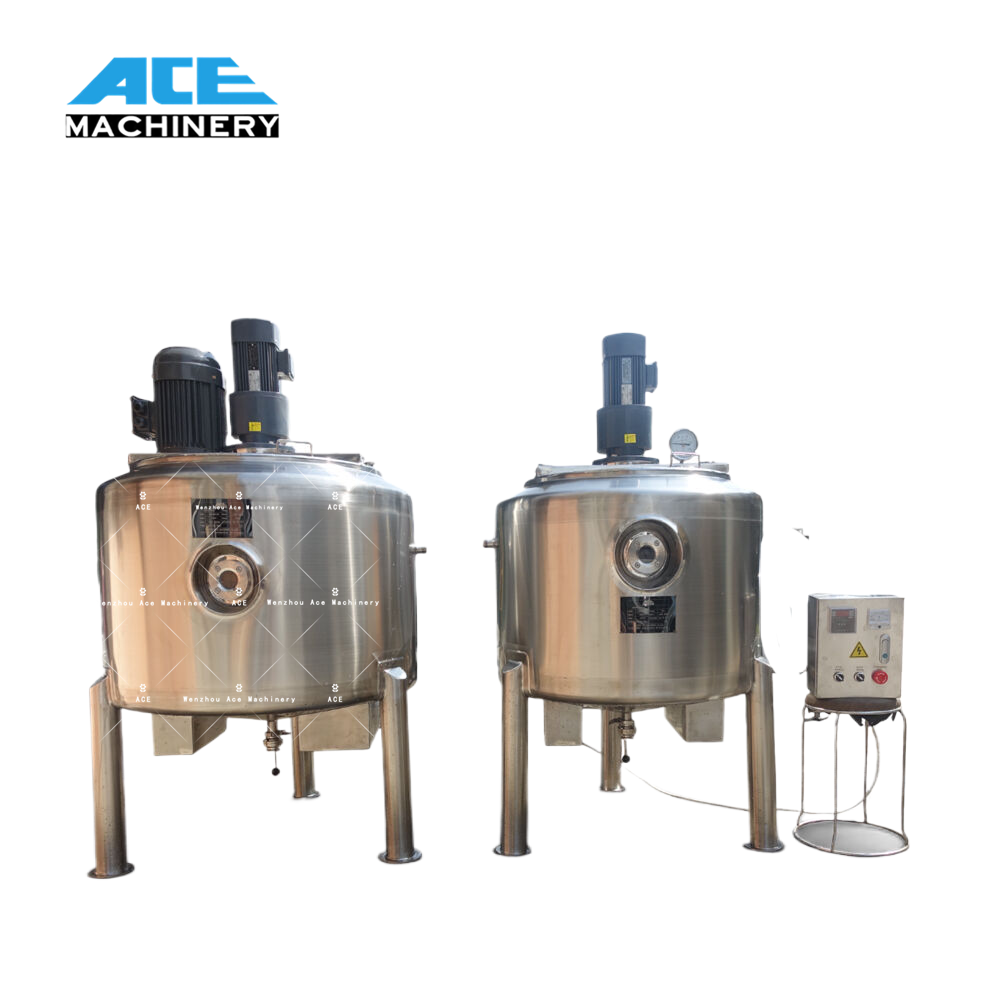

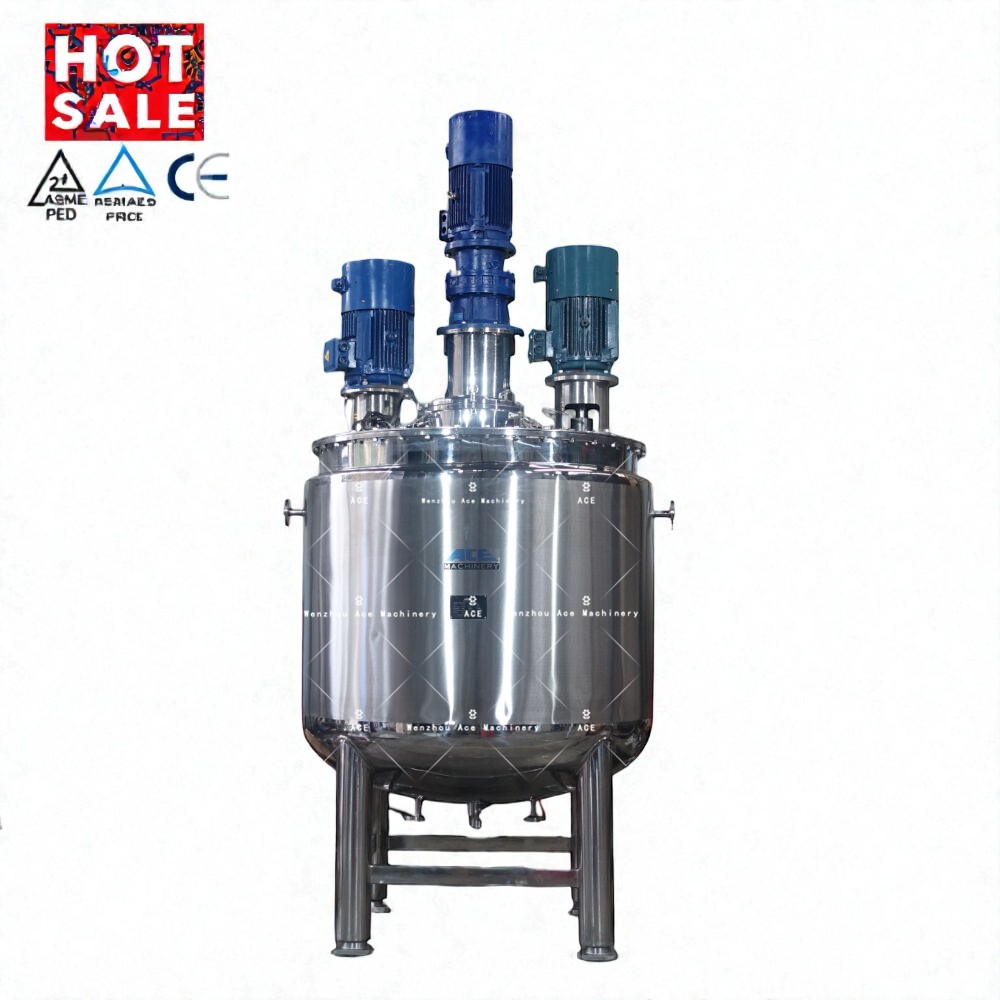

Stainless Steel Emulsifier Machines for Cosmetic Manufacturing Plant Equipment High Shear Automatic Cream Foam Making Skincare
Product Description
Cosmetic Manufacturing Plant Equipment: Emulsifier Machines for Cream Foam Making and Skincare Product Processing
🏭
Custom Made 50L- 30,000L Mixing tank, 22 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products. 15-30 day fast delivery.
Products Description
Looking for the perfect mixing tank for your project? Our Mixing Tanks and Mixing Vessels make blending a breeze.
Custom Stainless Steel Mixing Tanks Specifications:
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: Stainless Steel 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer: Single / Double jacket / Three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers, dispersing
- Optional: Platform, wheels, ladder, variable frequency drive, explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Agitator Design and Fabrication
We design and produce a wide variety of agitators to provide a complete tank concept. Available agitator types include:
Gate agitator
Anchor agitator
Scraping agitator
Propeller agitator
High shear mixer
Dispersing disk
Rotor/Stator
External homogenizer
- Bottom magnetic agitator: Propeller impeller, speed 50-800rpm. Ideal for thin viscosity liquids like eye drops, injections, and water.
- Top mechanical agitator (Propeller): Speed 20-200rpm. Suitable for syrups, oral liquids, and culture media.
- Top mechanical agitator (Anchor/Frame): Speed 10-70rpm. Designed for higher viscosity materials.
- Emulsification homogenizer: Speed up to 2900rpm. Perfect for high viscosity applications like oil, fat emulsification, and suspensions.
We have more than one hundred different types of mixers to meet your product process.
Technical Parameters
| Feature | Specifications (Customizable) | ||
|---|---|---|---|
| Profile/Type | Single layer | Double layer | Three layer |
| Material | SS304 or SS316L | ||
| Volume | 50L - 30T | ||
| Tank Type | Vertical / Horizontal / Mobile | ||
| Heating Way | Electric / Steam Heating | ||
| Finish | Mirror polished Ra < 0.4um (Inside) / Satin (Outside) | ||
| Stirrer Speed | Low Speed: 0-200 RPM | High Speed: 960-3400 RPM | |
| Applications | Food, Beverage, Biological, Chocolate, Chemical Industry, etc. | ||
Details Images
Packaging & Shipping
We are experienced in the whole packing and shipping process. We ensure safe delivery through:
- Sufficient inner protection with bubble bags and foam boards.
- Qualified wooden packages or cartons for all products.
- Strict packing processes to ensure the safety and completeness of the goods.
Certifications
Frequently Asked Questions
What types of bottoms do stainless steel mixing tanks come in?
There are four basic types:
Flat Bottom (cost-effective, versatile),
Dished Bottom (used in pressurized tanks, offers better drainage),
Sloped Bottom (excellent drainage without long shafts), and
Cone Bottom (superior drainage for high solids content).
Should I use a baffle in my mixing tank?
Baffles ensure that the contents move from top to bottom rather than just swirling in place. This ensures consistent stirring and prevents ingredients from remaining unmixed in the center.
What are the standard terms of payment?
Typically, T/T in advance: 40% as a deposit, and the remaining 60-70% balance payment before delivery. Photos of products and packages are provided before the final payment.
What is the typical delivery time?
Generally, it takes 3 to 4 weeks after receiving the advance payment. The specific time depends on the customization requirements and the quantity of the order.
Do you test the equipment before delivery?
Yes, we perform 100% testing on all goods before delivery to ensure quality and performance.
Can you produce equipment based on samples or drawings?
Yes, we can manufacture customized mixing equipment according to your specific samples or technical drawings.
