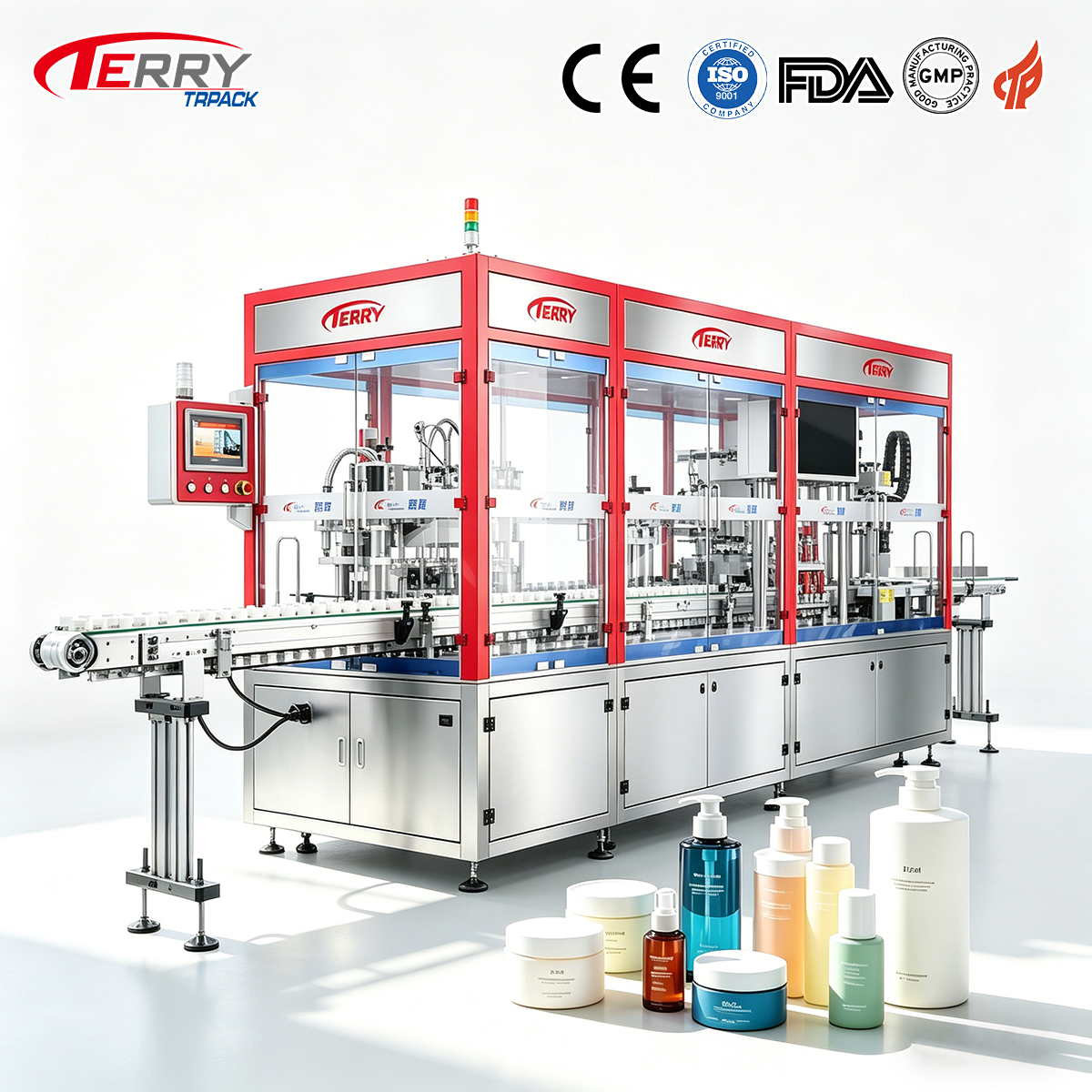

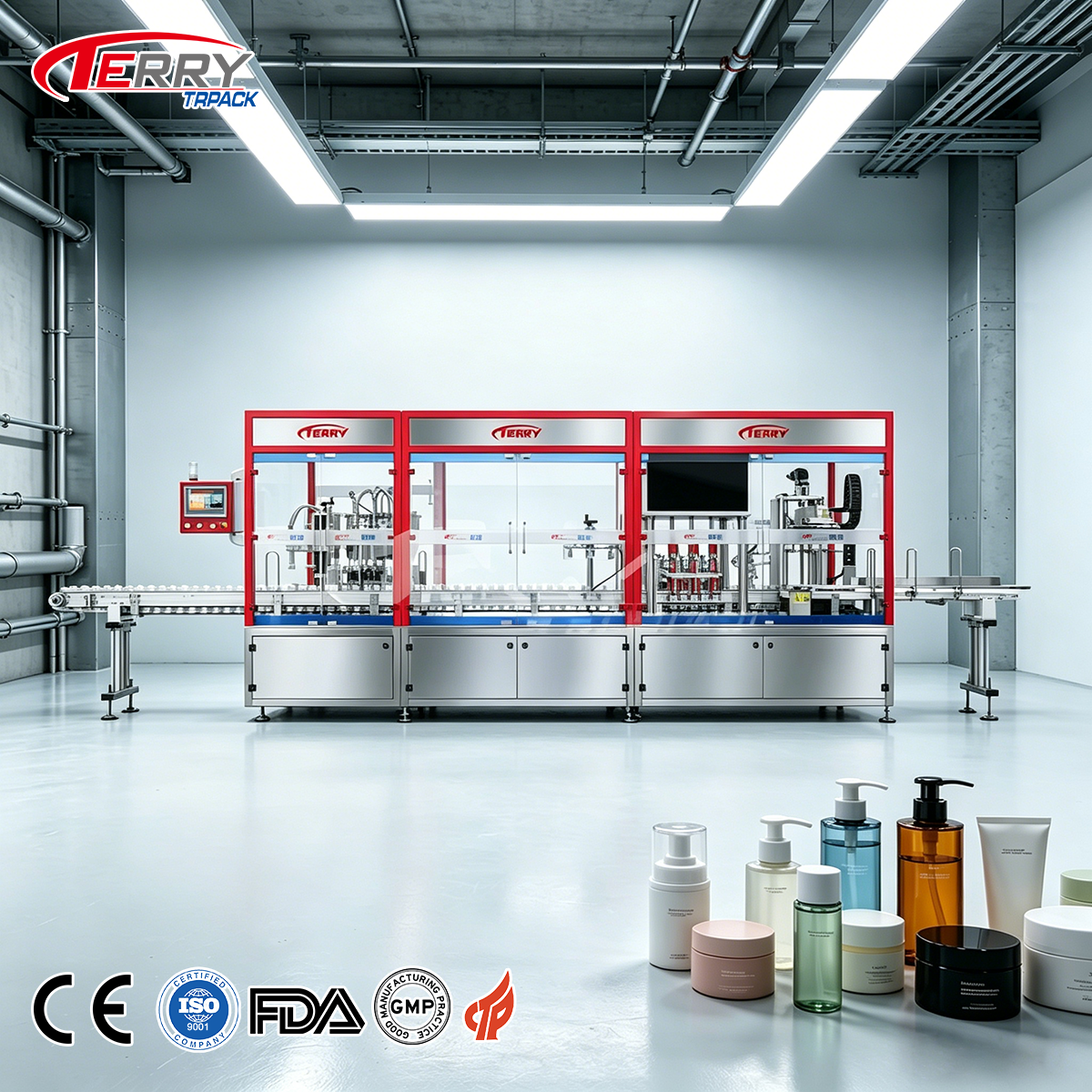

Customized Cosmetic Filling Machine Automatic Liquid Lotion Cream Filling Capping Sealing Equipment For Beauty Production Line
Product Description
🚀 Highlights of Automatic Multi-functional Cosmetic Filling and Capping Machine

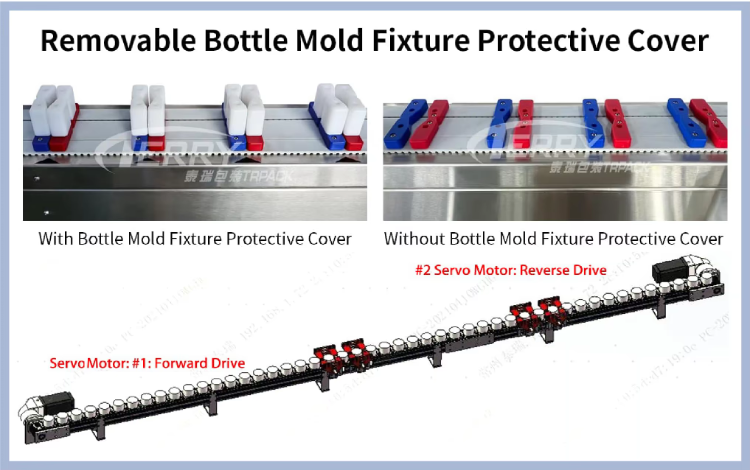

- Adjustable Bottle Mold: Features a retractable bottle-insertion mold channel, quick adjustment of spacing between mold fixture guard plates. Each material can be recorded on a scale for rapid production changeover.

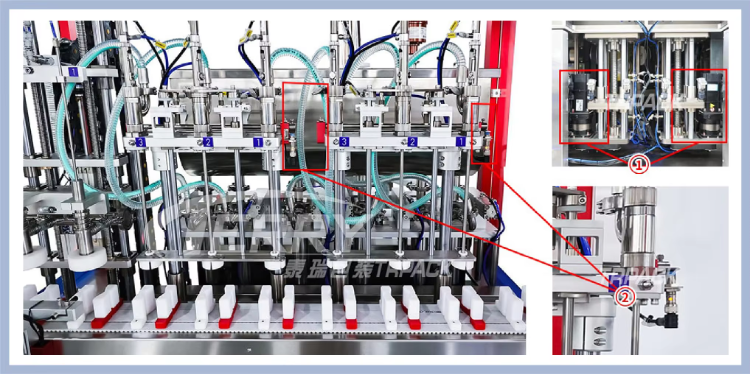

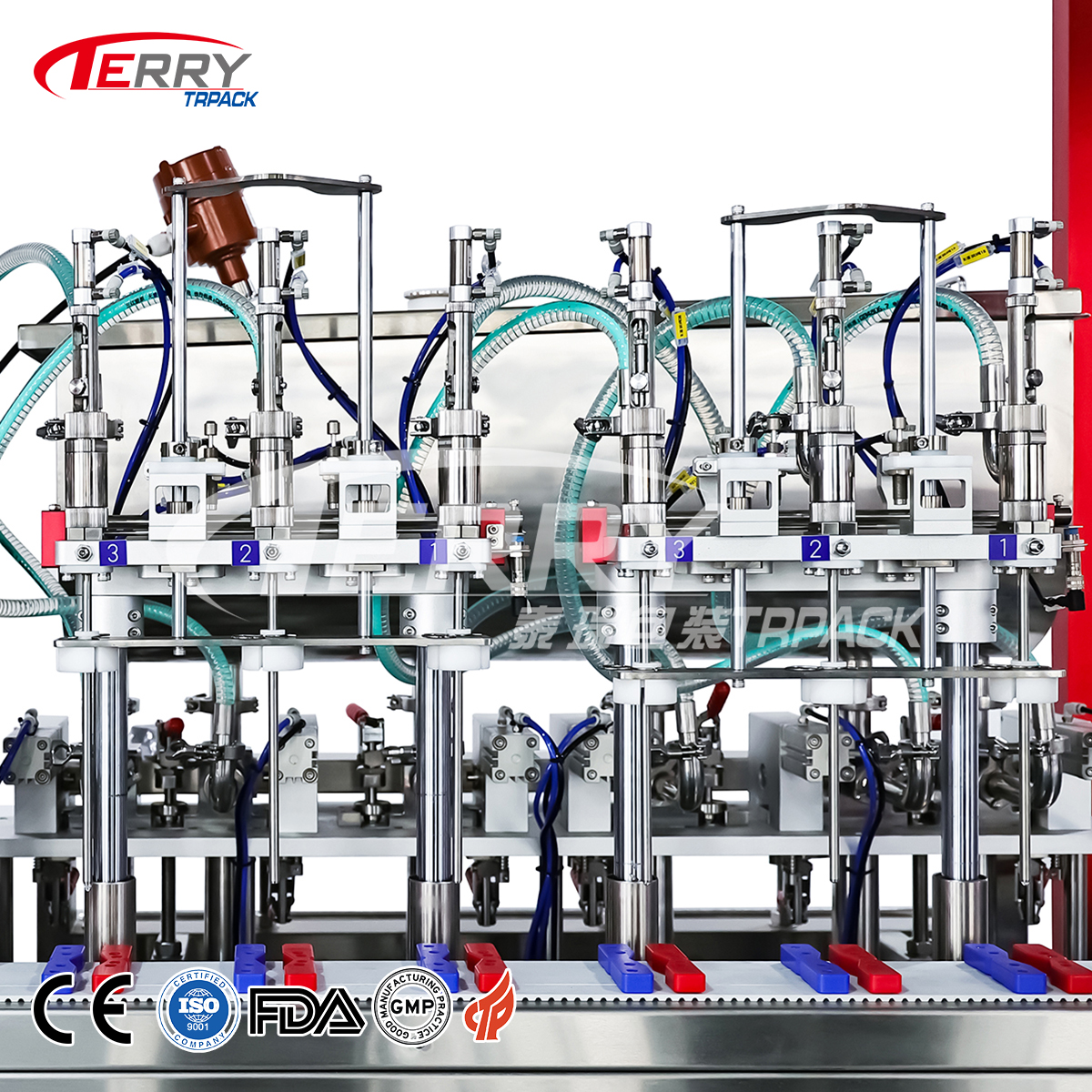

- Servo Motor Controlled Filling: Utilizes 6-head servo filling (3+3 twice filling). Servo motor drives a synchronous belt with a stable dual-screw rod lifting mechanism, ensuring high precision and adjustable speeds to prevent bubbles.
- Quick Production Changeover: Equipped with a production changeover cart. The material box has a rounded bottom for zero residue. Automatic feeding is controlled based on liquid level detection.
- GMP-Compliant Filling Valves: Custom-made, food-grade valves with a hygienic quick-connect system. Simple structure for easy disassembly and cleaning without blind spots, meeting strict GMP standards.
- Movable Inner Plug / Inner Pad Mechanism: Enhances versatility for various cosmetic container types.
- Servo Motor Controlled Capping: Soft silicone claw-type capping to prevent scratches. Three servo motors drive the process, with torque adjustable via touchscreen.
Customization Capabilities

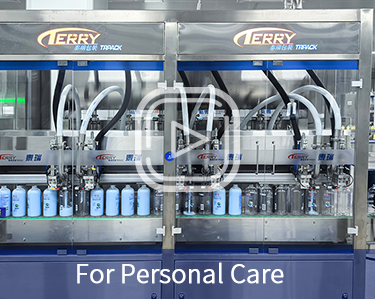

Water and Lotion Line: Essence, Perfume, Moisturizing Water, Toner.

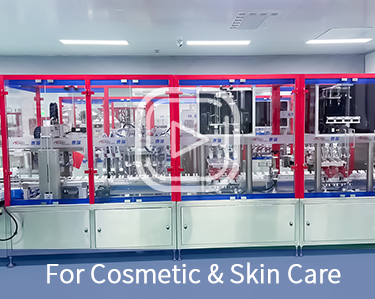

Automatic Filling Lines: For Lotion, Cream, and Bottle Loading.
Downstream Equipment: Gear Pump Filler, Sealing, and Labeling.

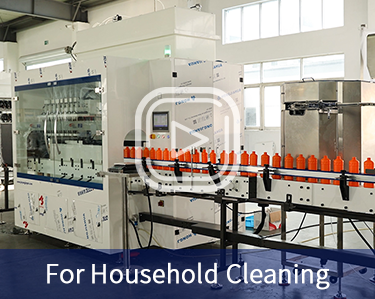

Specialty Filling: Anti-corrosion gear pump for household cleaners and disinfectants.
Integrated Systems: For Oral sprays and fresheners.
High-Speed Tube Lines: Facial cleansers, hand creams, and ointments.
⚙ Technical Specification
| Filling Head | 6 pcs (3 Half-Fill + 3 Refill) or 8 pcs |
| Filling Volume | 20-300ml (500ml filled twice) |
| Filling Accuracy | 20-100ml ±0.5g; 101-300ml ±0.5% |
| Capping Head | 3-4 pcs based on filling configuration |
| Applicable Bottle Type | Diameter: Φ50-120mm; Shoulder Height: 110-250mm |
| Applicable Caps Type | Diameter: Φ15mm - 40mm (Customizable) |
| Production Capacity | Approx. 60 bottles/min (Standard 500ml) |
| Air Resource | 0.6 ~ 0.8Mpa (Dry and clean air) |
| Power Supply | AC380V 50/60Hz |
| Total Power | 8KW |
| Overall Weight | 2000 KG |
Details & Advantages

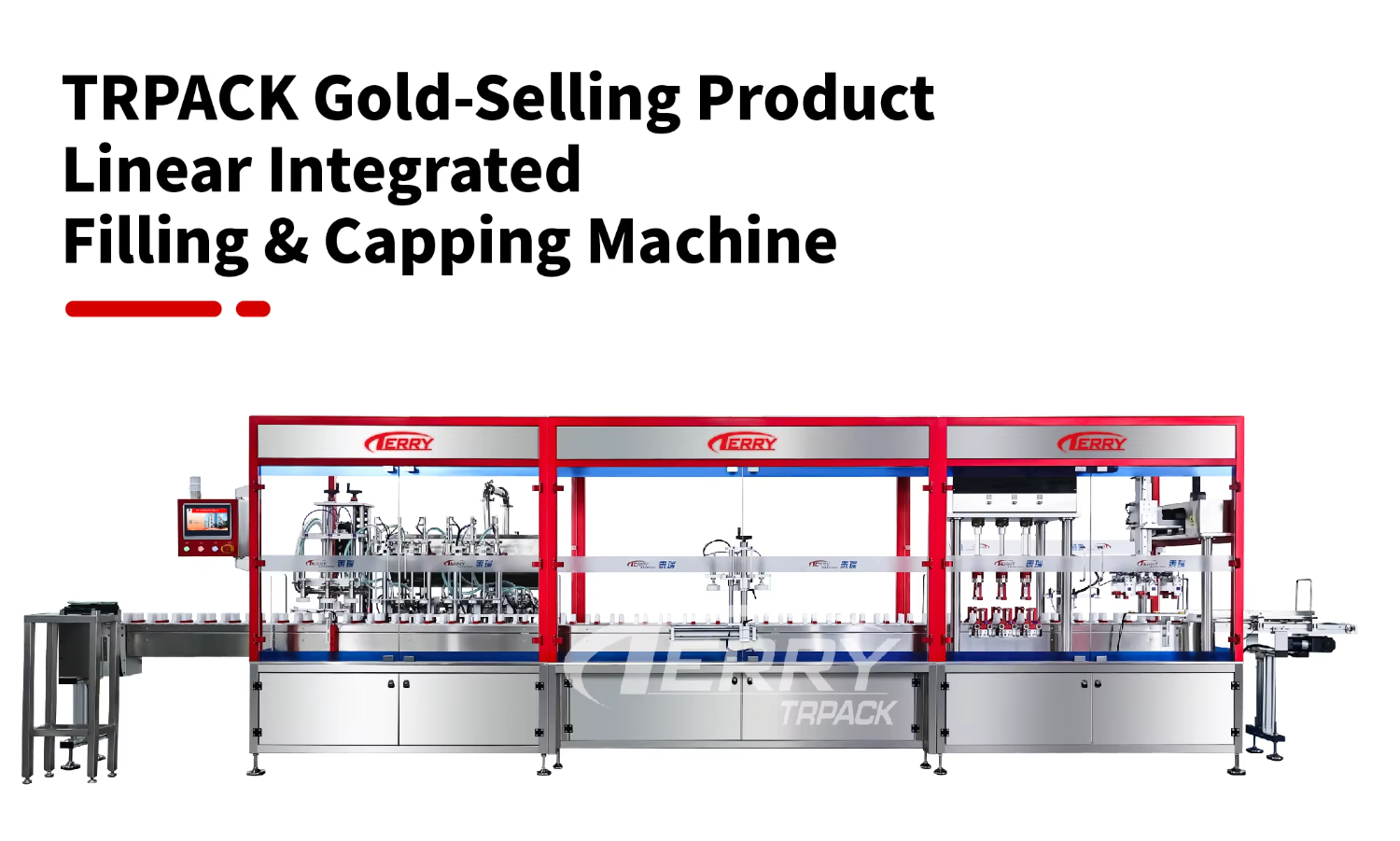

This high-output machine is constructed from SUS304 stainless steel, with contact parts in SUS316L. It features PLC control and a touchscreen HMI for seamless operation. An integrated electronic scale provides precise weight feedback for automatic dose adjustment.

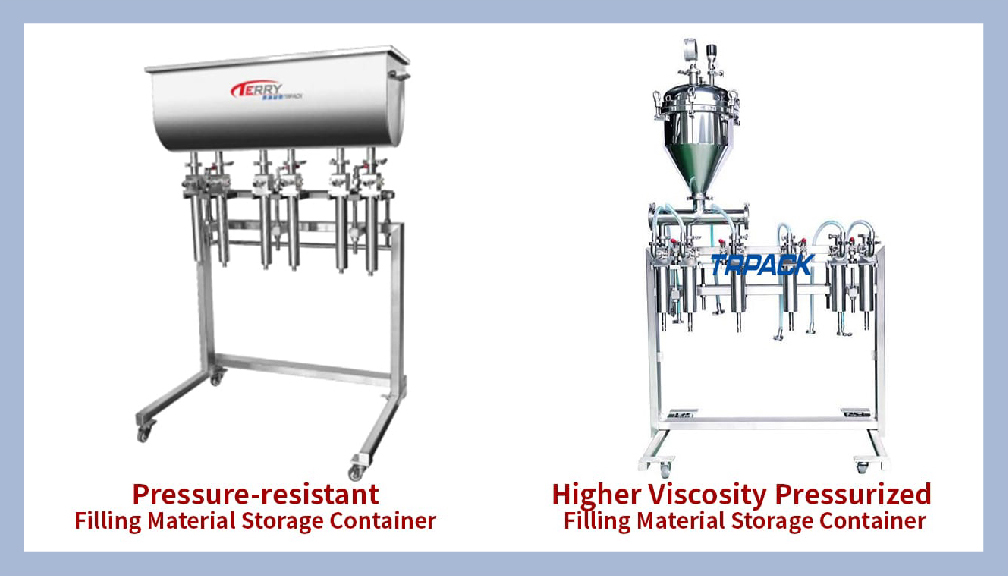

Production Change Cart: Specialized containers for both aqueous and high-viscosity products.

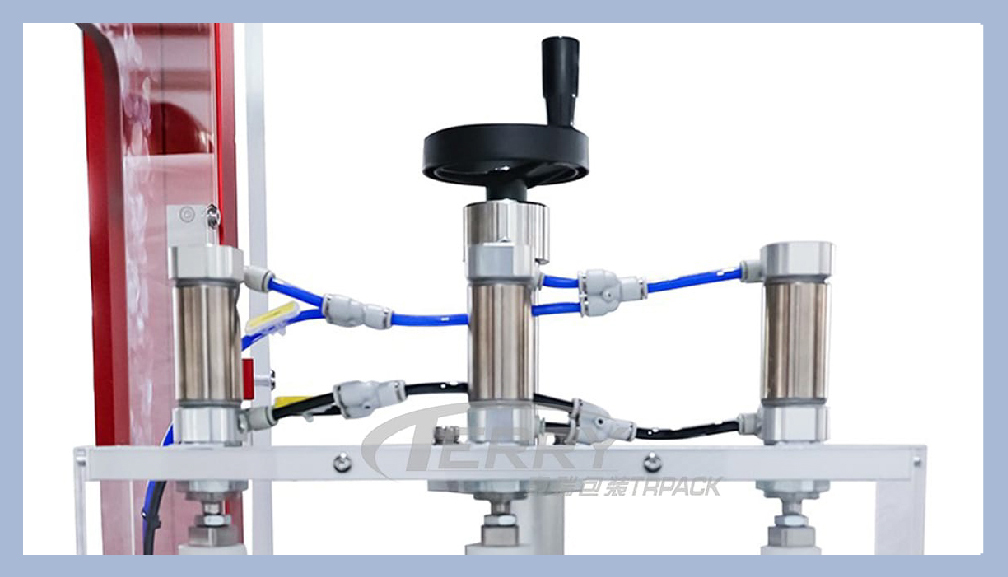

Plug Mechanism: Precision handling for soft inner pads and deformation-sensitive materials.

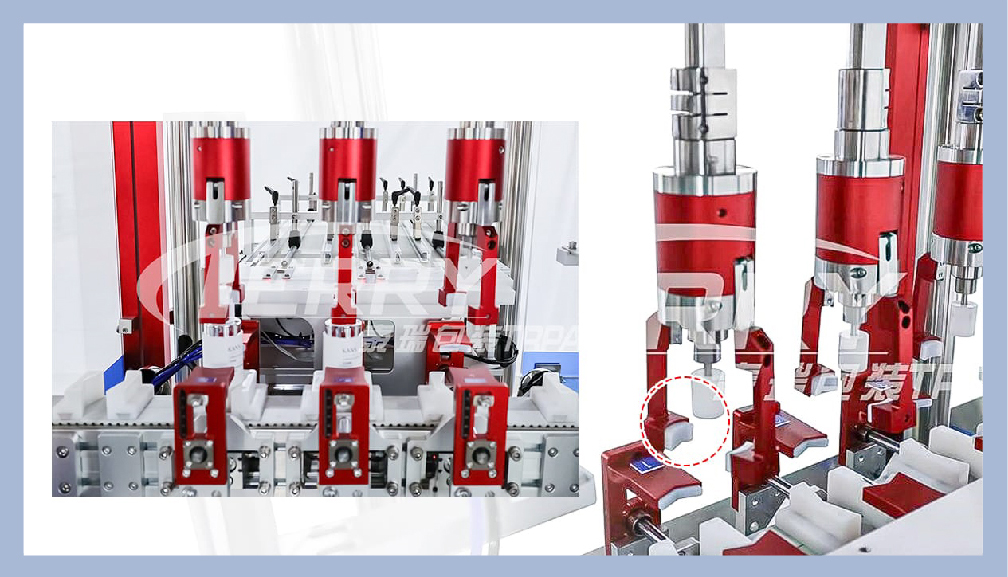

Silicone Gripper: Prevents damage or scratches to delicate cosmetic caps.

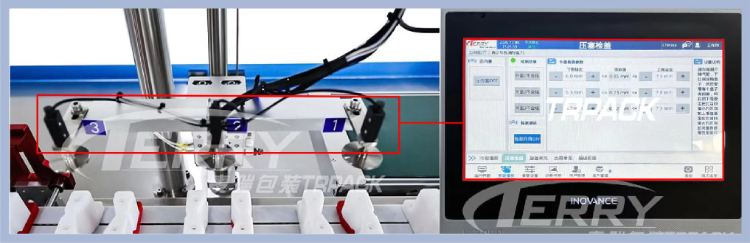

Quality Control & Rejection

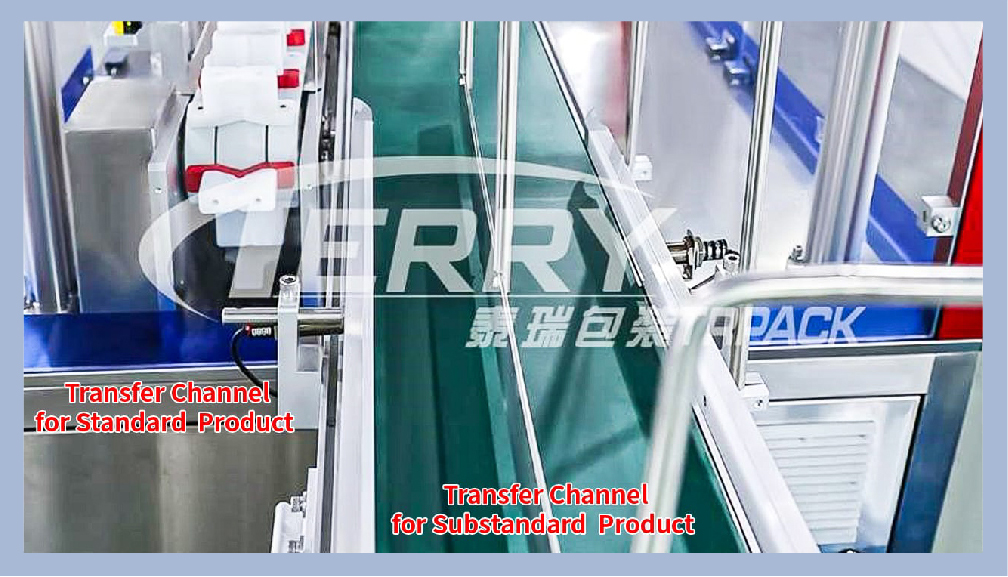

Sensor Inspection: Detects missing, misaligned, or high caps. Substandard products are automatically diverted to an independent transfer channel for separate management, ensuring 100% qualified output.
Frequently Asked Questions
Are you a factory or a trading company?
We are a responsible factory with over 10 years of experience in manufacturing high-end packaging equipment with competitive pricing.
What certifications and qualifications do your machines hold?
Our equipment is fully compliant with ISO 9001 and EU CE certifications. We also hold over 50 national patents for our intelligent packaging technology.
Can you provide customized solutions for my production line?

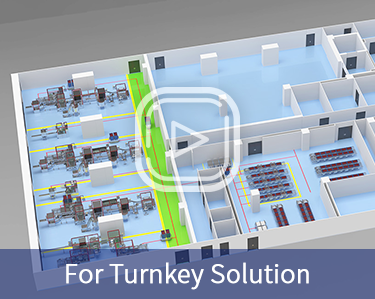

Yes, we specialize in turnkey project solutions including intelligent control, automated filling, capping, packaging, and palletizing tailored to your specific requirements.
What are your shipment and payment terms?
We offer EXW, FOB, CNF, CIF, and DDP (Door to Door) terms. Payments are accepted via T/T, L/C, D/P, Western Union, and more.
Do you provide technical support for overseas installations?
While we may not have local offices in every country, we can dispatch our professional technical engineers to your location whenever you require on-site support.
What should I prepare before purchasing the machinery?
Please provide your specific project requirements, factory layout, local voltage info, and physical samples (bottles, caps, and materials) for us to develop an accurate proposal.
