Facial Cream and Hand Lotion Making Machine Essential Cosmetic Manufacturing Equipment for Production
Product Description

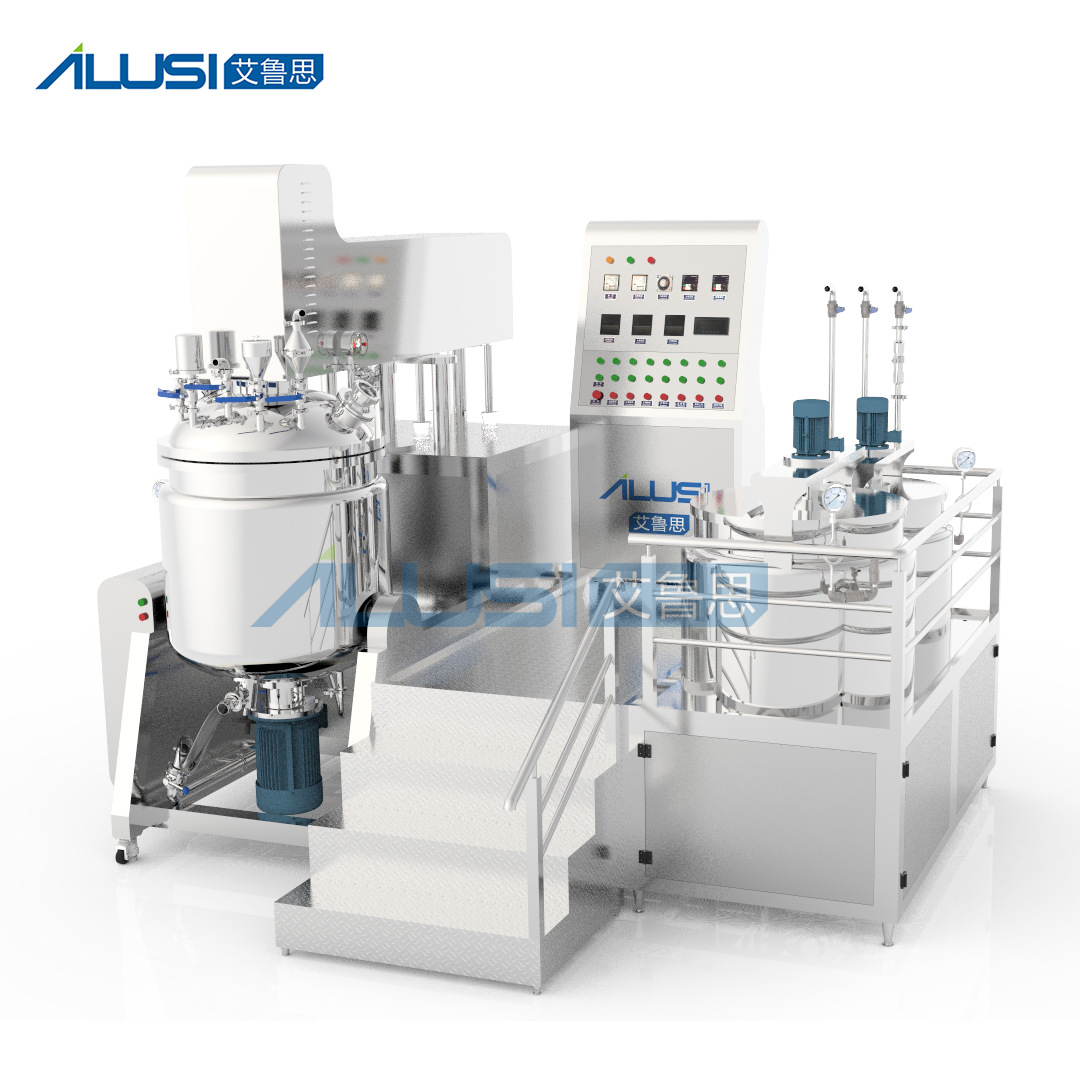

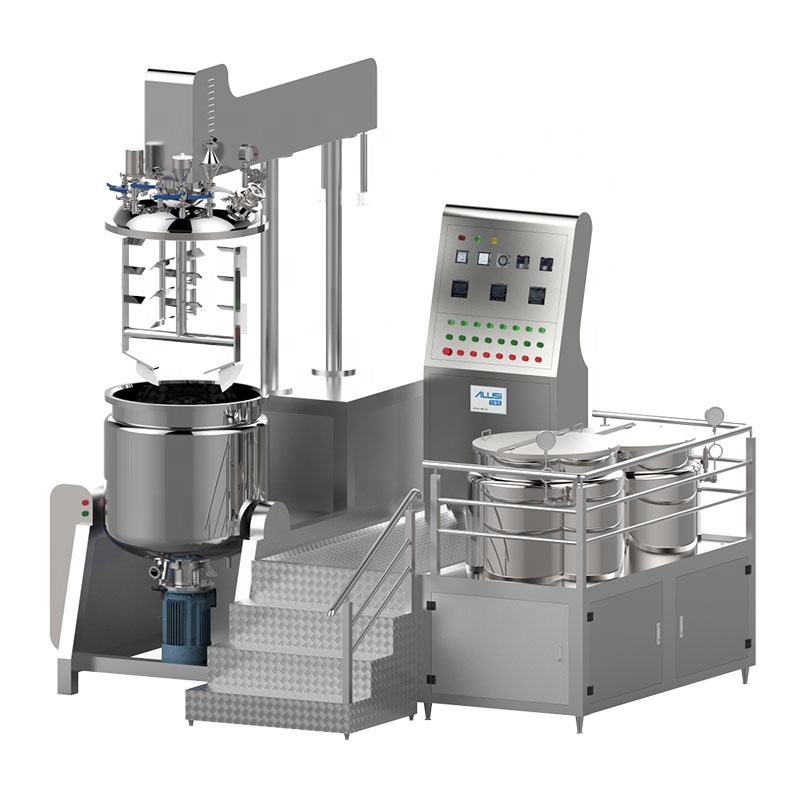

Hydraulic Lifting Vacuum Emulsifier Mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Features at a Glance
- Emulsifier, water phase tanks, oil phase tank
- Three-layer tank, steam or electric heating
- Variable frequency speed scraper mixing
- 3600rpm high-speed homogenizer, fineness 0.2-5um
- Vacuum pumps and sync solenoid valves
- Hydraulic lifting system
- Stainless steel platform and stairs
- Button or HMI operation

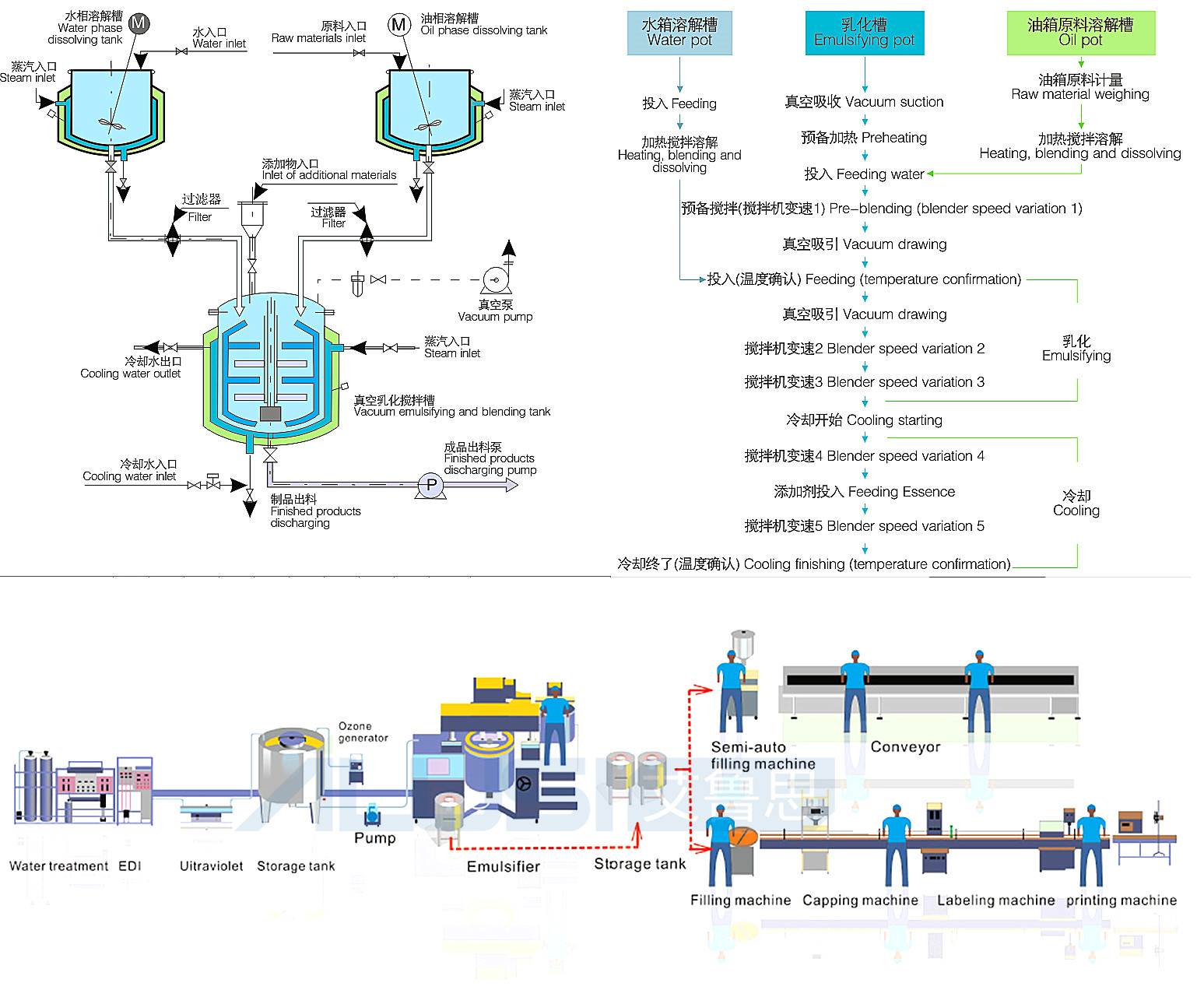

Working Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

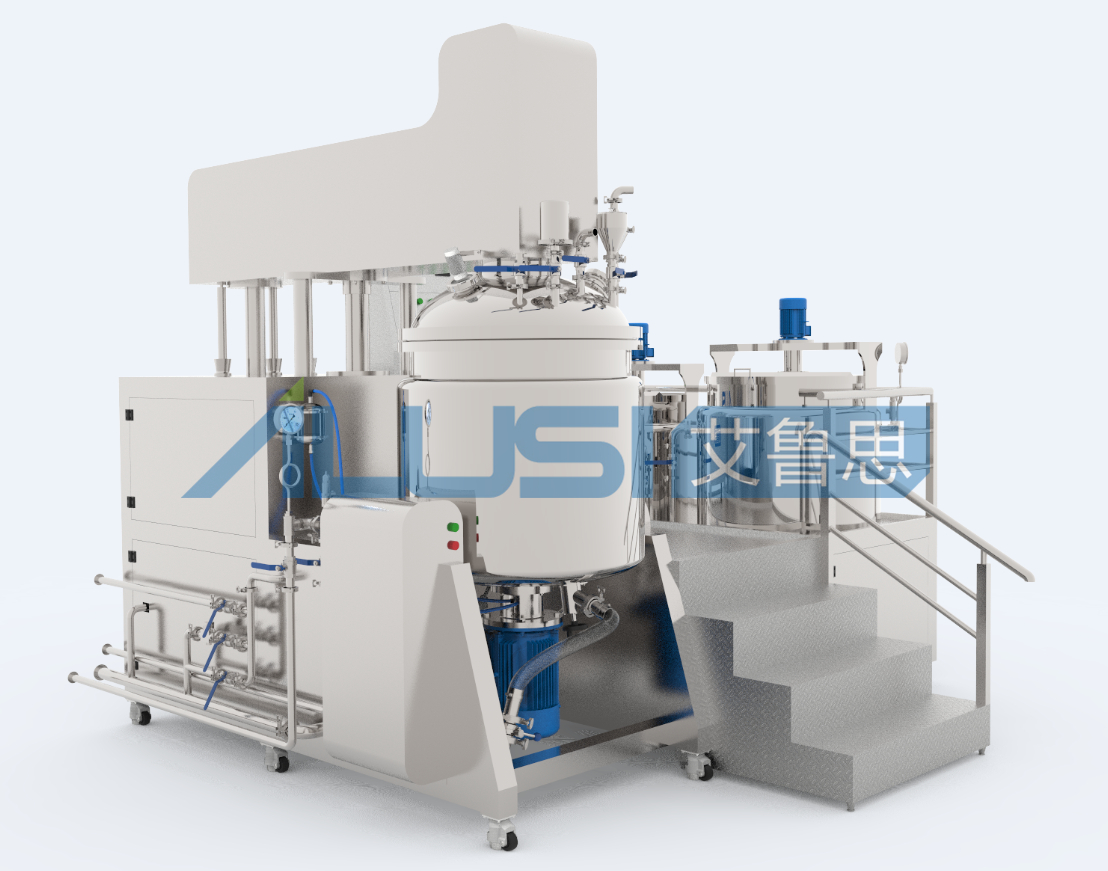

Right elevation

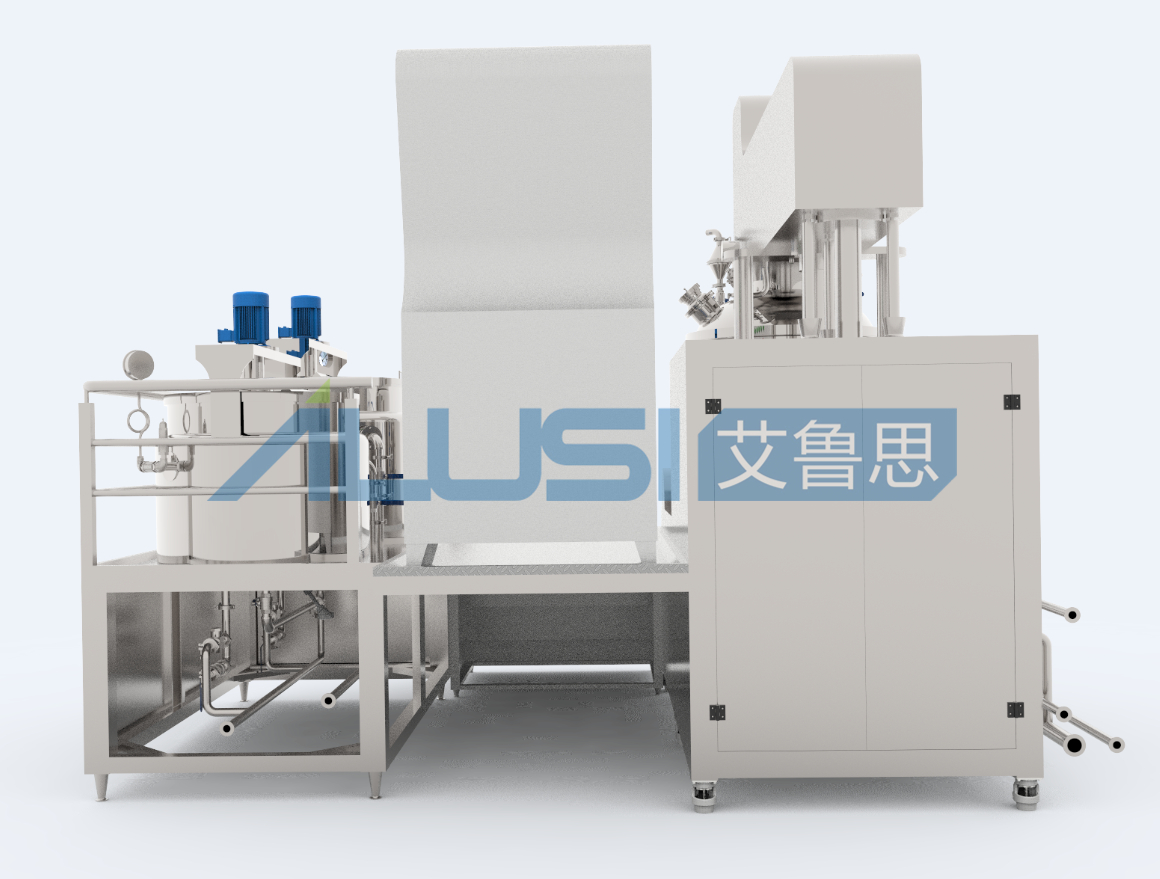

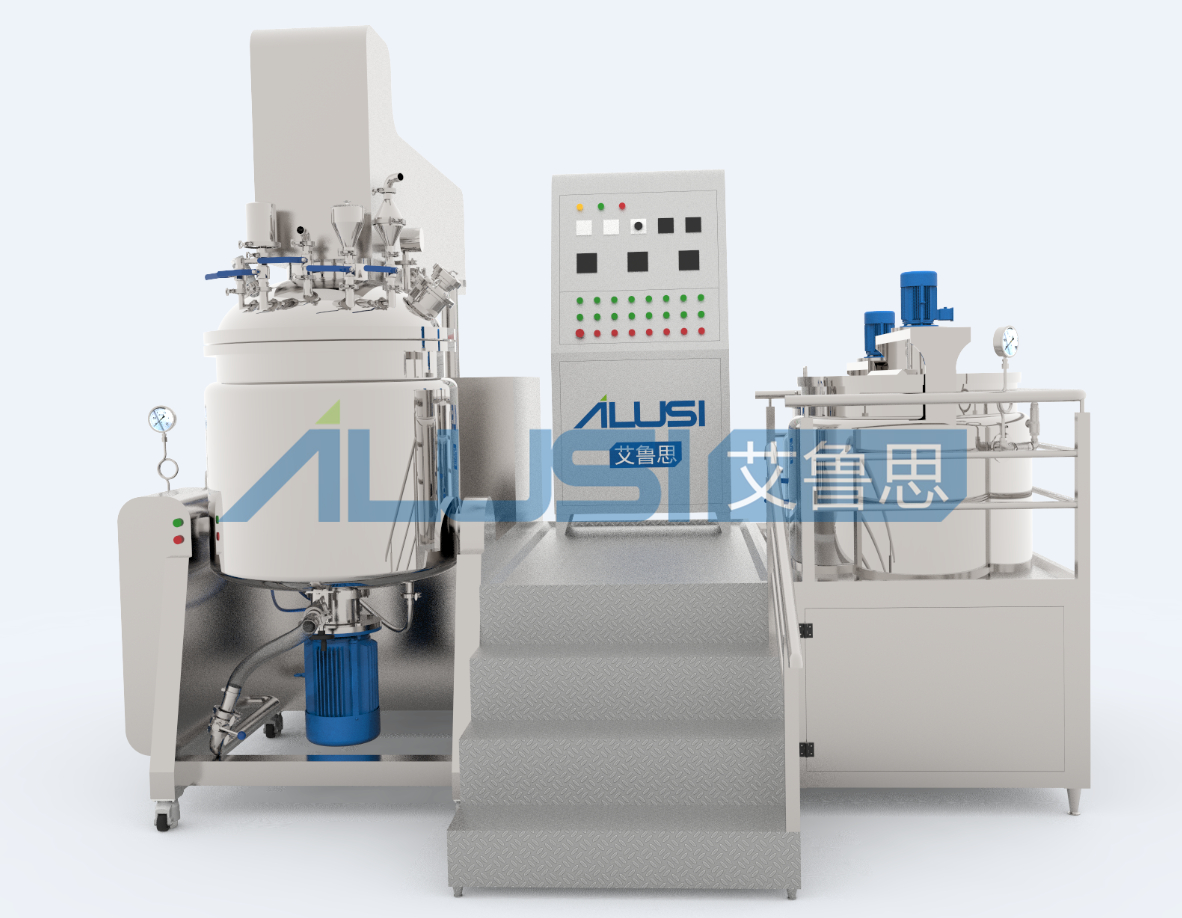

Front elevation
Back elevation

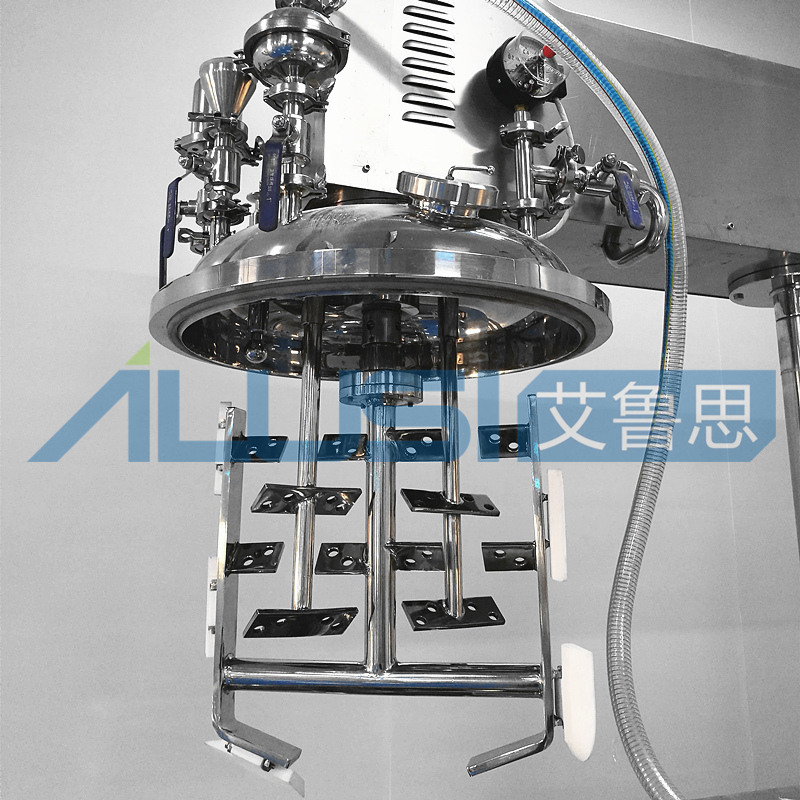

Lid

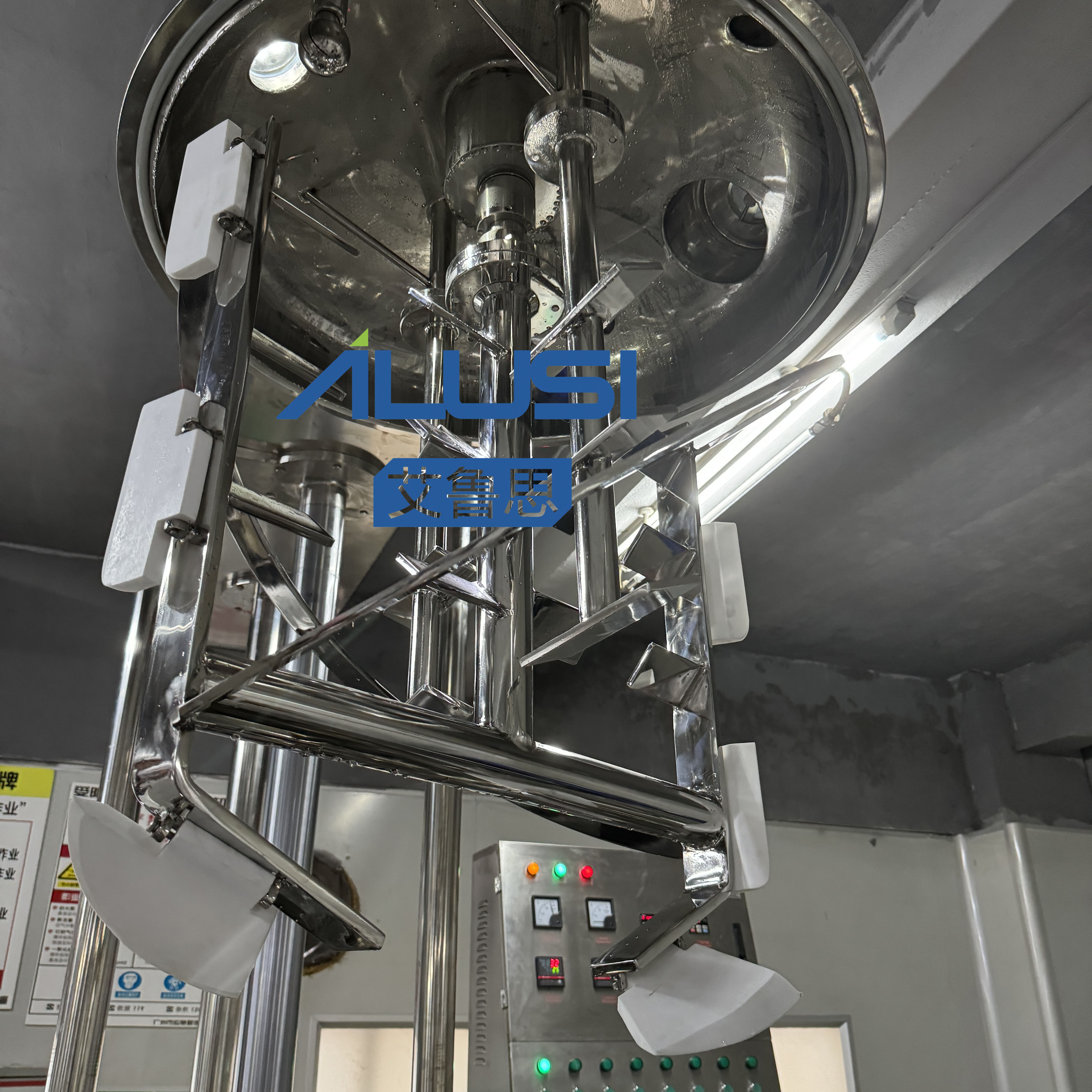

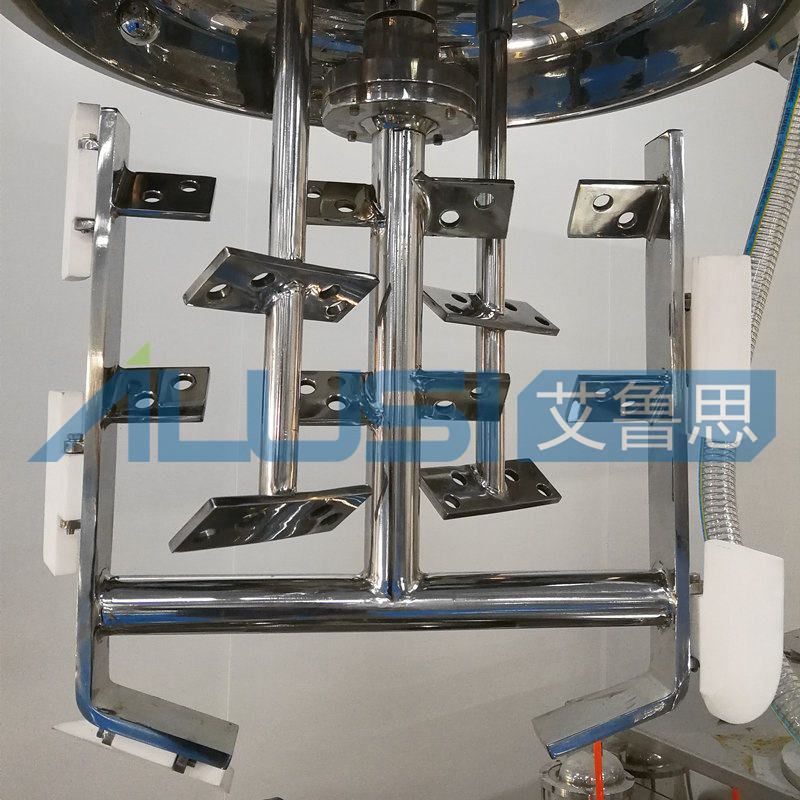

Mixer

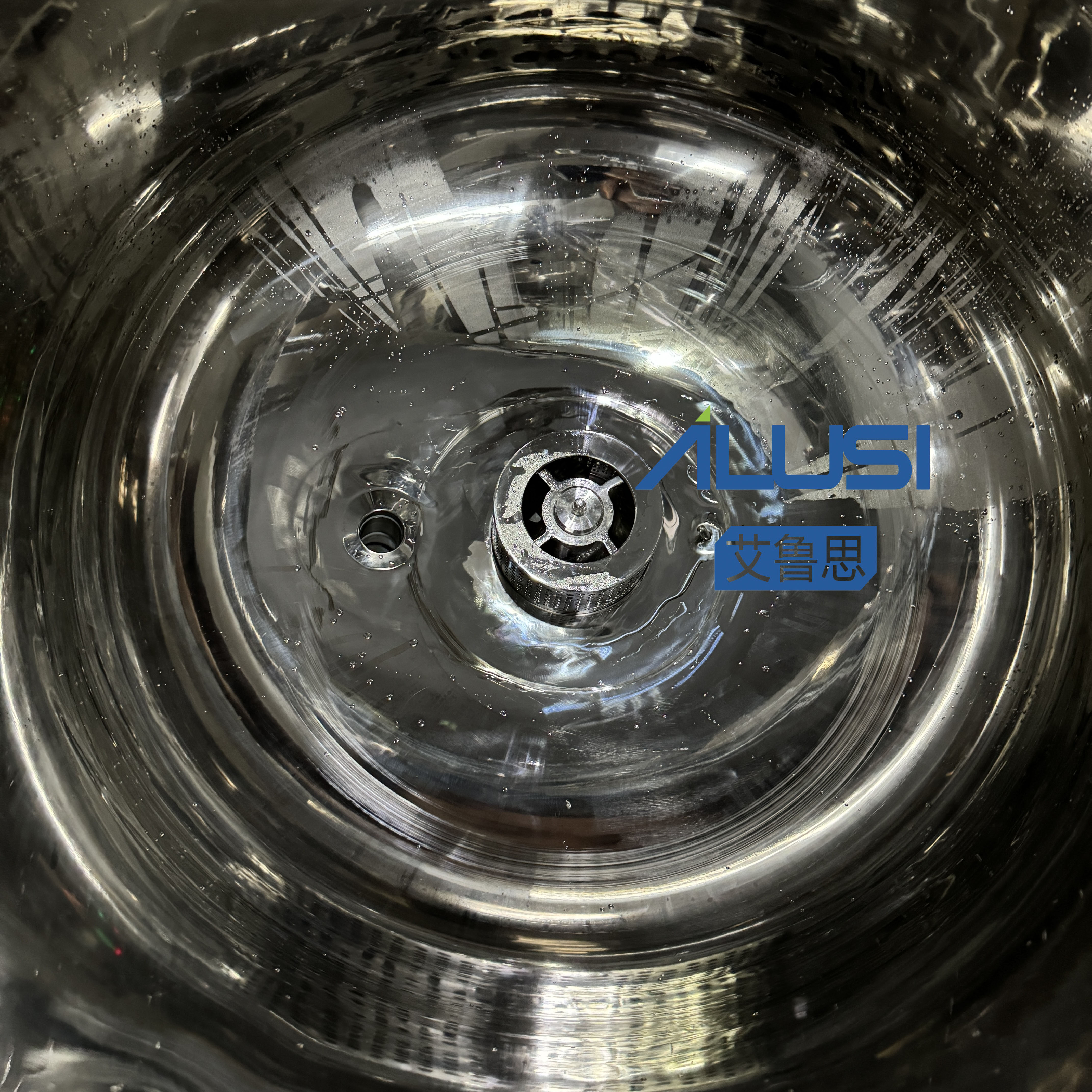

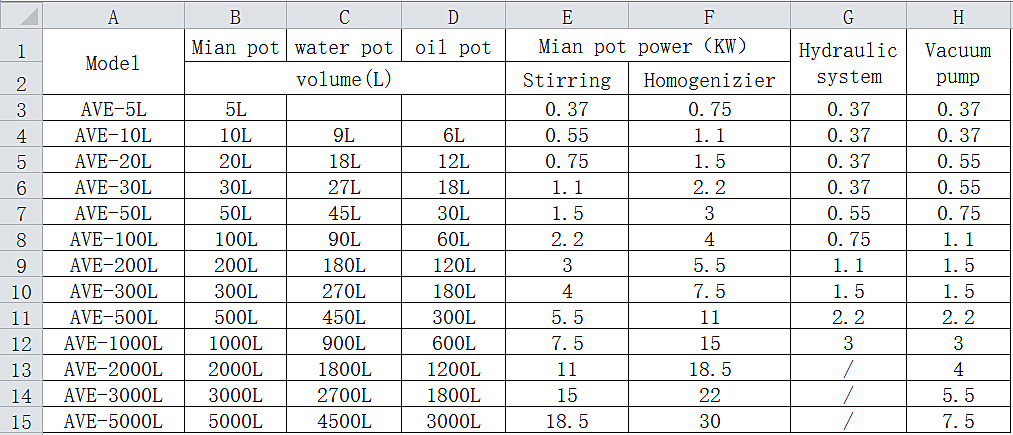

Inside of tankProduct Specifications
| No | Model | AVE-500 |
|---|---|---|
| 1 | Working capacity | 500L |
| 2 | Heating method | Steam/electric |
| 3 | Mixing type | Upper frame oar scrape mixer |
| 4 | Mixing motor power | 5.5KW |
| 5 | Mixing frequency | 5.5KW |
| 6 | Mixing Speed | 0-65rpm |
| 7 | Homogenizer | Bottom homogenizer with frequency inverter |
| 8 | Bottom Homogenizer power | 11KW |
| 9 | Speed | 0-3000rpm (50Hz)/0-3600rpm (60Hz) |
| 10 | Hydraulic lift system | Dual Hydraulic, power: 2.2KW |
| 11 | Vacuum pump | Water cycle vacuum pump, power: 2.2KW |
| 12 | Control method | Button control/ HMI |
| 13 | Frequency converter | Delta/Panasonic/Mitsubishi |
| 14 | Electrical components | Schneider/Delixi |
| 15 | Jacket | Double jacket, 3 layers |

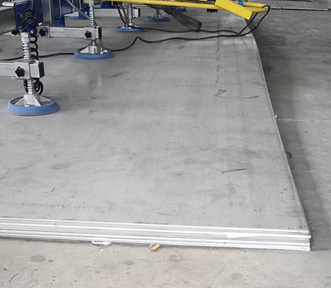

| 16 | Tank materials | Inner: SUS316 (6mm); Middle: SUS304 (6mm); Outer: SUS304 (4mm) |
Product Configuration

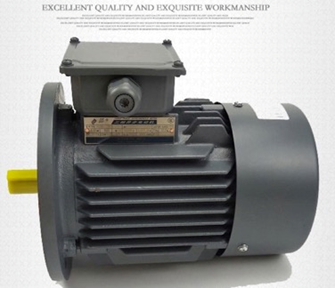

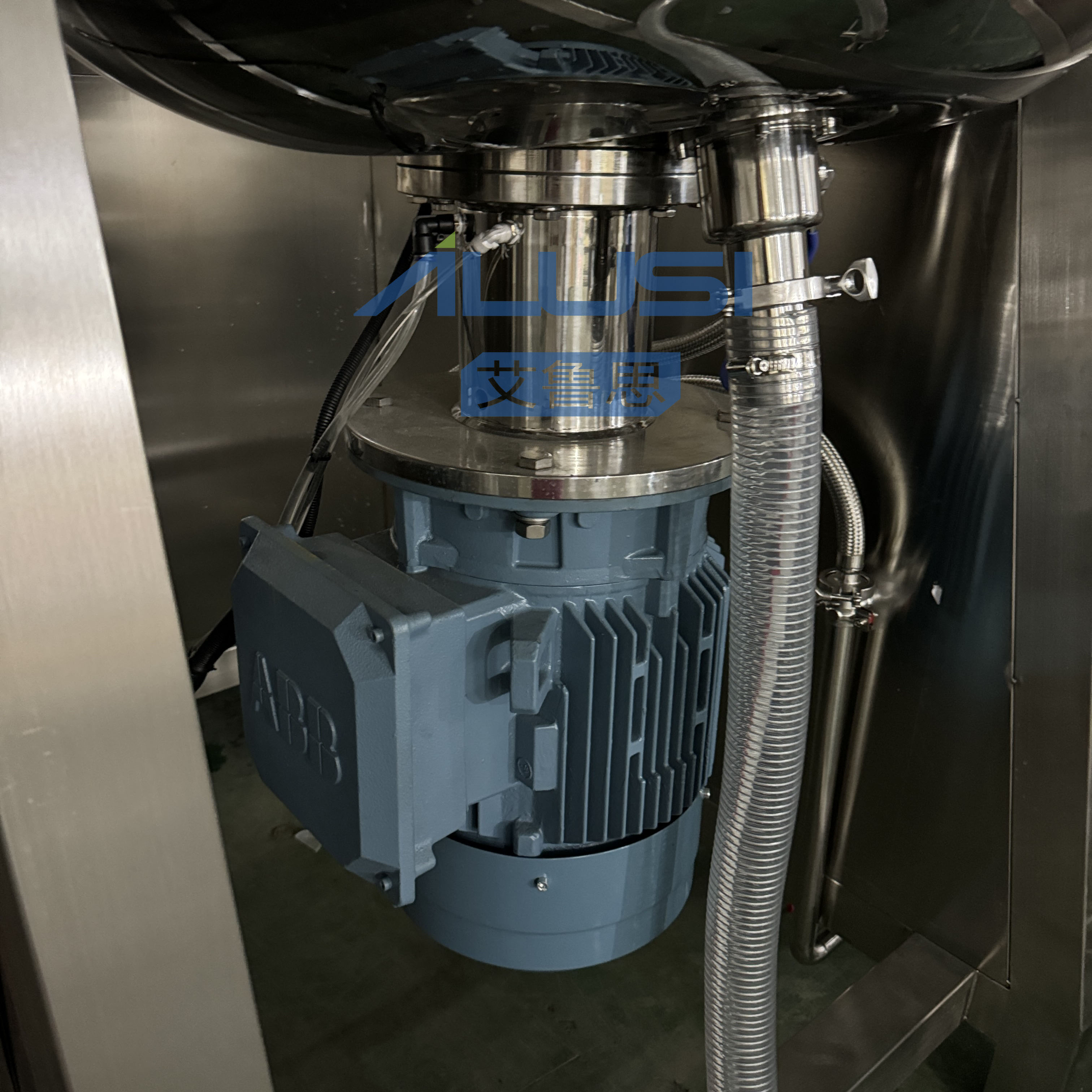

Siemens Motor
Reducer
Delta Frequency inverter

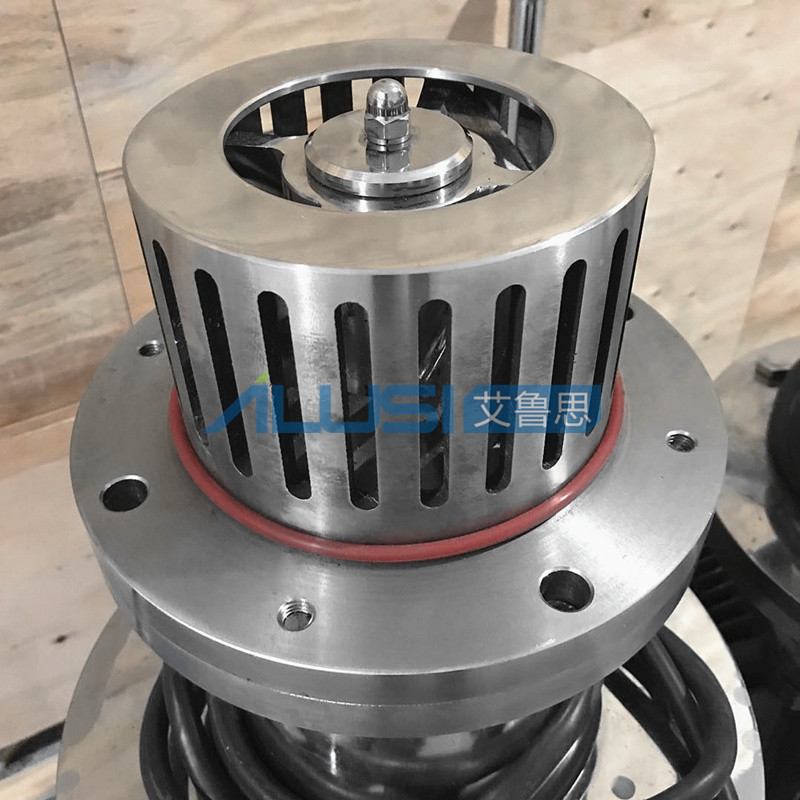

Stator and rotor
Rotor
Materials SUS304&316L

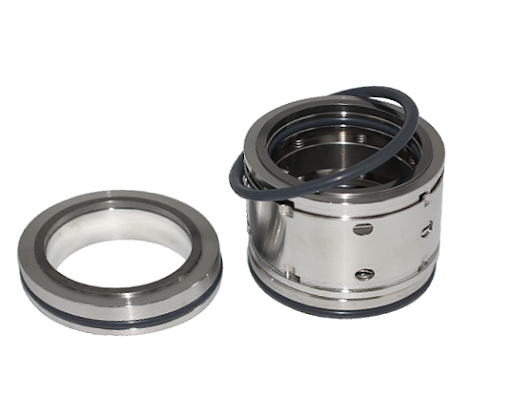

Burgmann Mechanical seal
NSK Bearing
Omron temperature controllerPacking & Delivery
The equipment is packed in imported wooden boxes. Transportation by sea, air, express and train available.

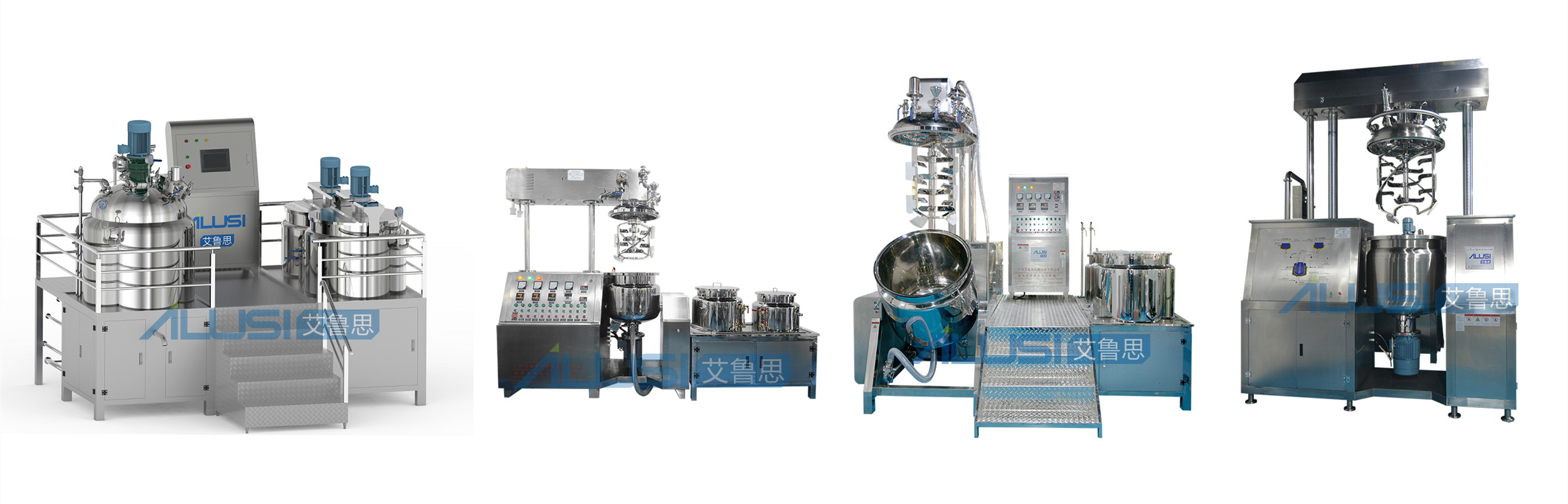

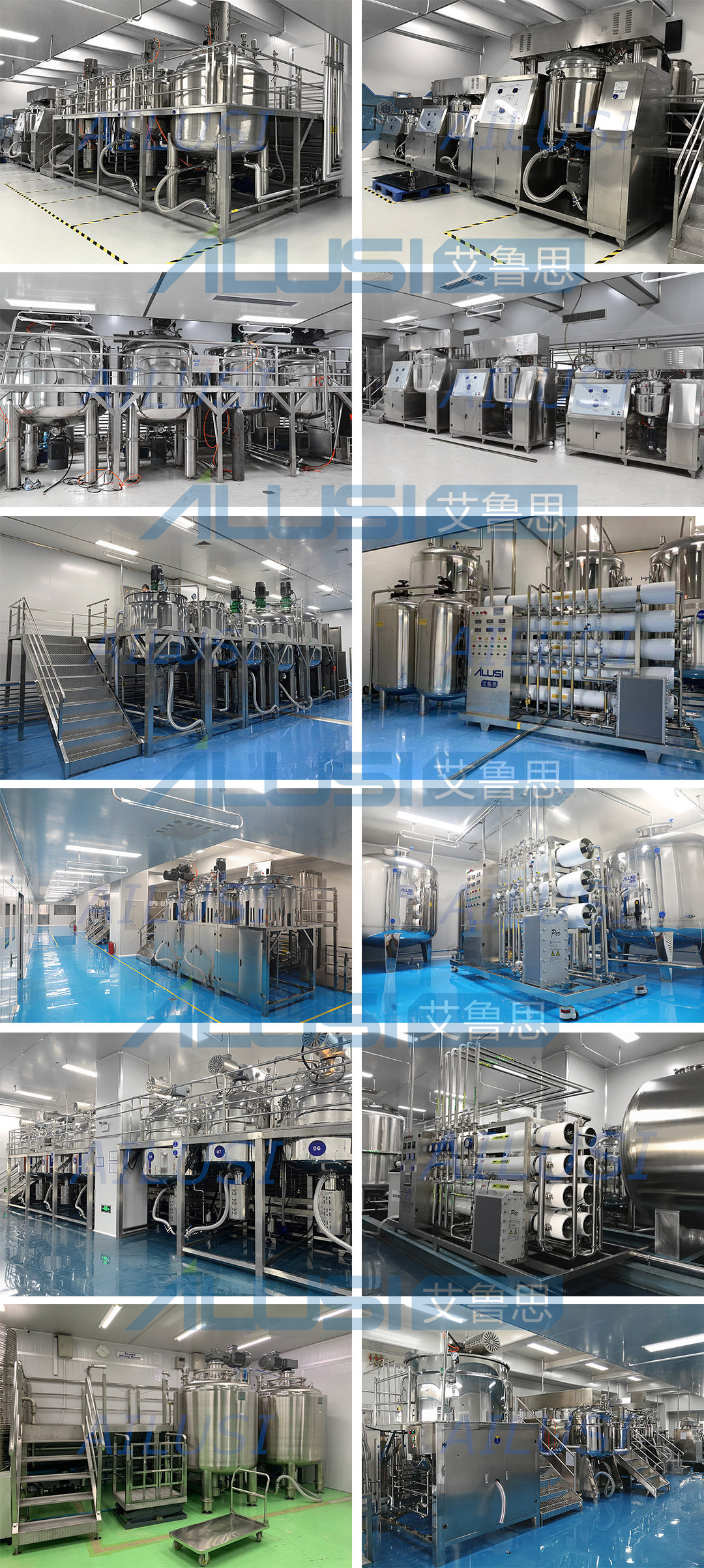

Successful Projects & Materials
Frequently Asked Questions
What materials can this mixer handle?
It is designed for high-viscosity materials such as creams, pastes, lotions, ointments, and gels used in cosmetics, pharmaceuticals, and food industries.
What is the particle size achieved after emulsification?
The high-speed homogenizer can crack materials into particles as small as 200nm to 2um for a stable and smooth emulsion.
Does the machine support vacuum de-foaming?
Yes, the vacuum system removes bubbles promptly during the mixing process, ensuring a high-quality, bubble-free finished product.
How is the tank heated?
The machine supports both steam and electric heating options with a three-layer jacket design for efficient temperature control.
Are the machine materials compliant with industry standards?
Yes, the inner layer is made of SUS316L and the outer layers are SUS304 stainless steel, meeting GMP standards for sanitary production.
Can the mixing speed be adjusted?
Absolutely. Both the scraper mixer and the homogenizer are equipped with frequency inverters for variable speed control.
