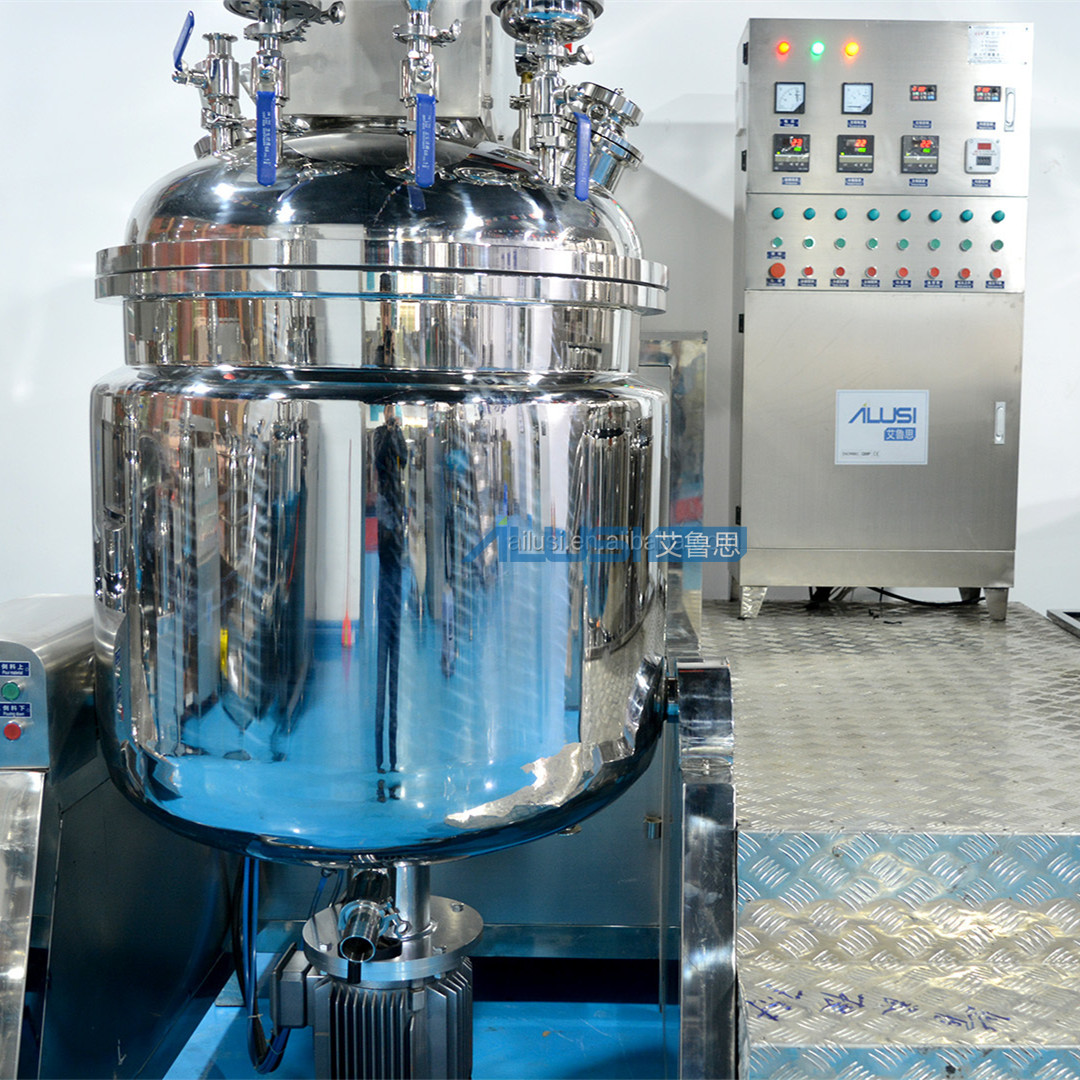

Skin Cosmetic Machine Product Tank Cream Mixing Emulsifying Lotion Making Equipment
Product Description

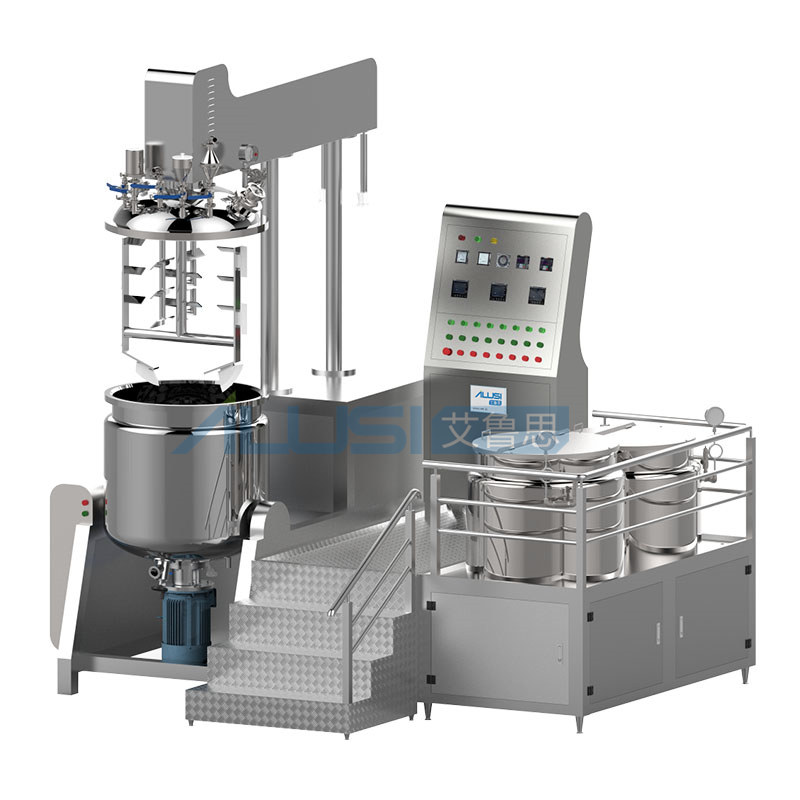

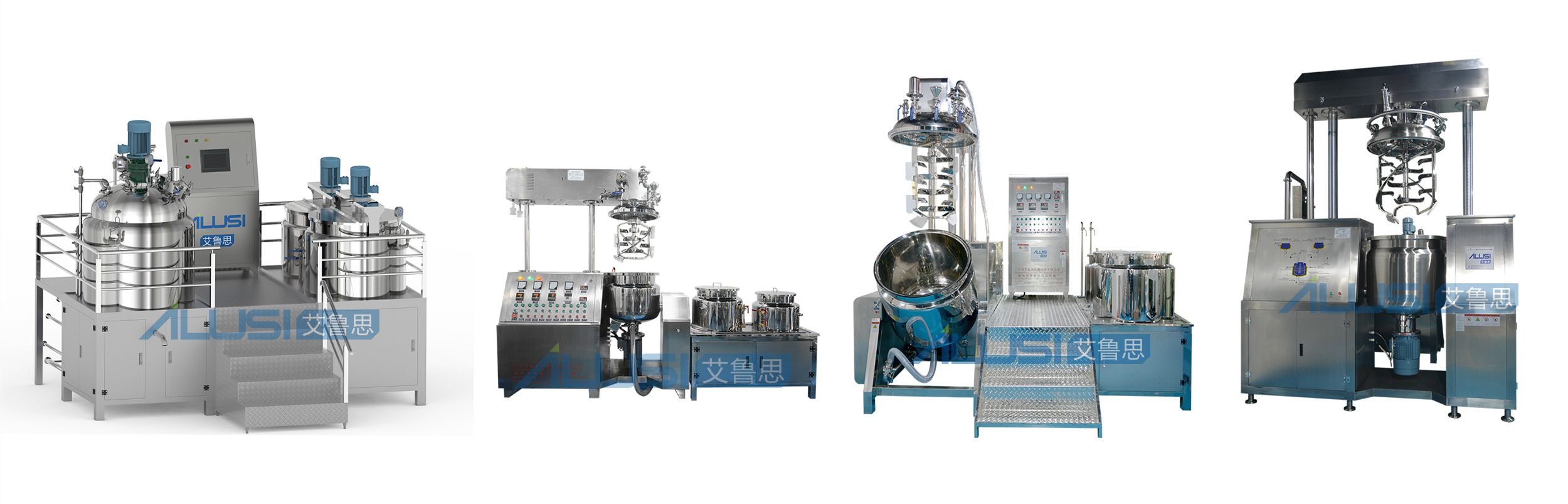

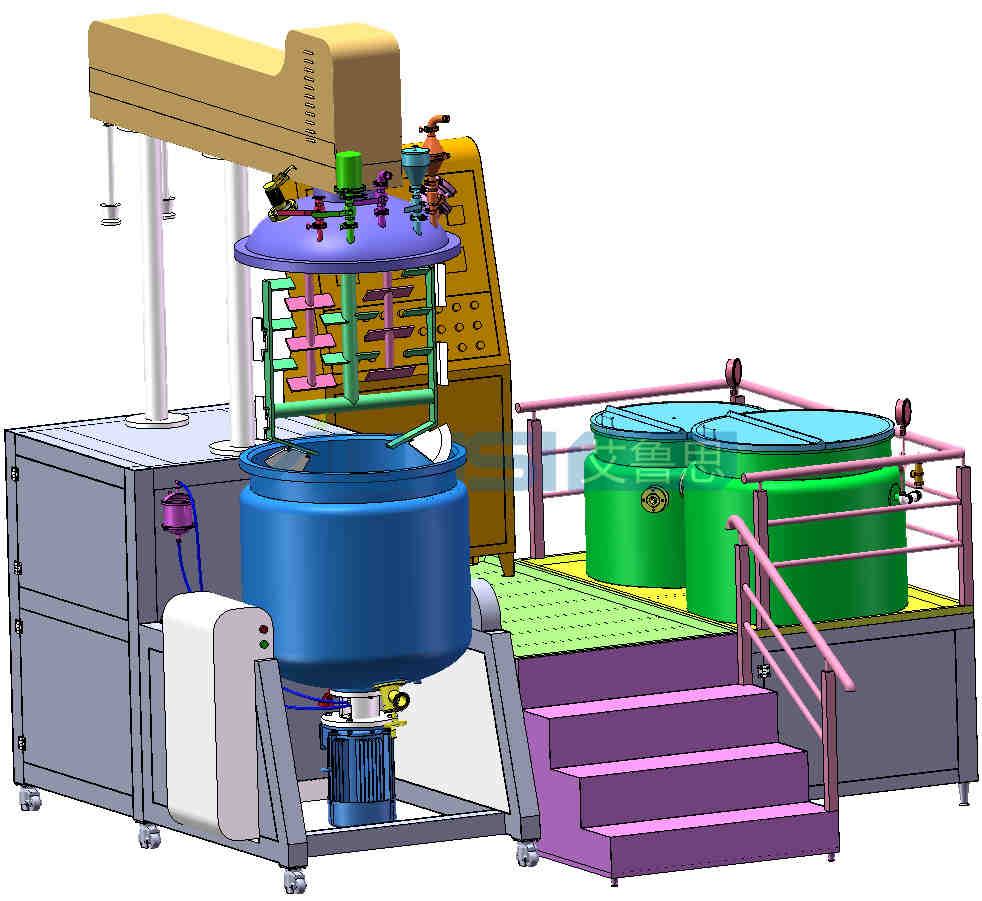

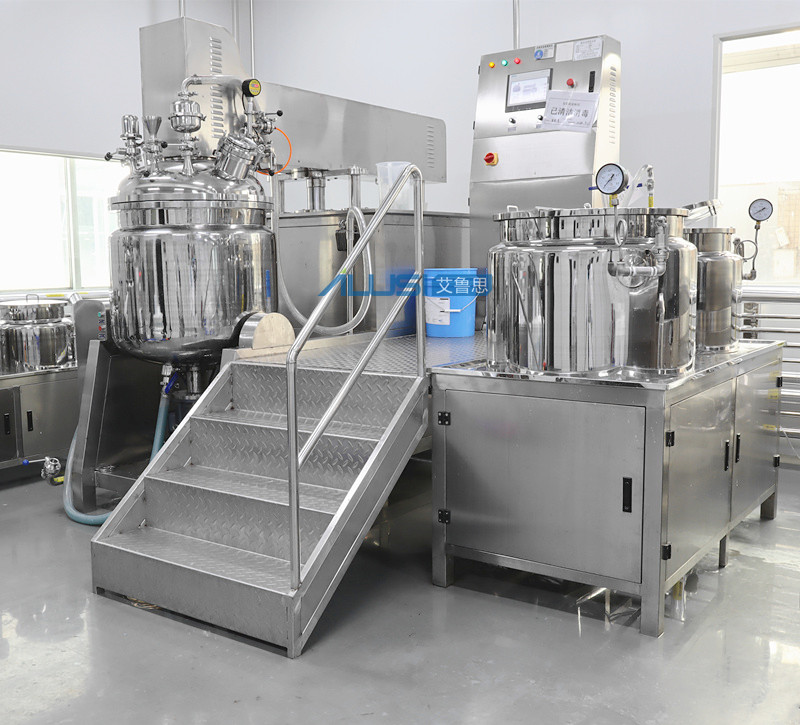

⚙️ Hydraulic Lifting Vacuum Emulsifier Mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
🛠️ Product Configuration
📋
Standard Configuration
• Emulsifier, water phase tanks, oil phase tank
• Three-layer tank, steam or electric heating
• Variable frequency speed scraper mixing
• 3600rpm high-speed homogenizer, fineness 0.2-5um
• Vacuum pumps and sync solenoid valves
• Stainless steel platform and stairs
• Button or HMI operation
• Emulsifier, water phase tanks, oil phase tank
• Three-layer tank, steam or electric heating
• Variable frequency speed scraper mixing
• 3600rpm high-speed homogenizer, fineness 0.2-5um
• Vacuum pumps and sync solenoid valves
• Stainless steel platform and stairs
• Button or HMI operation

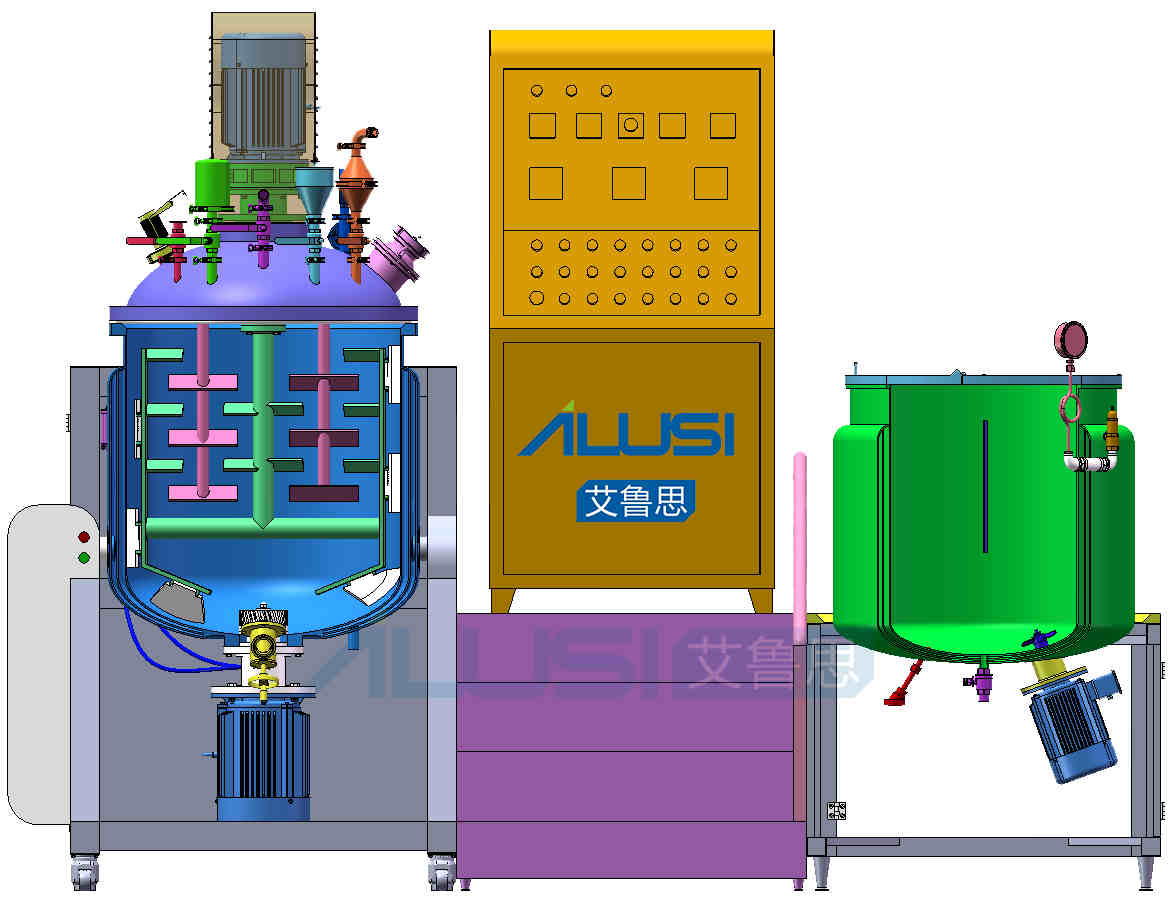

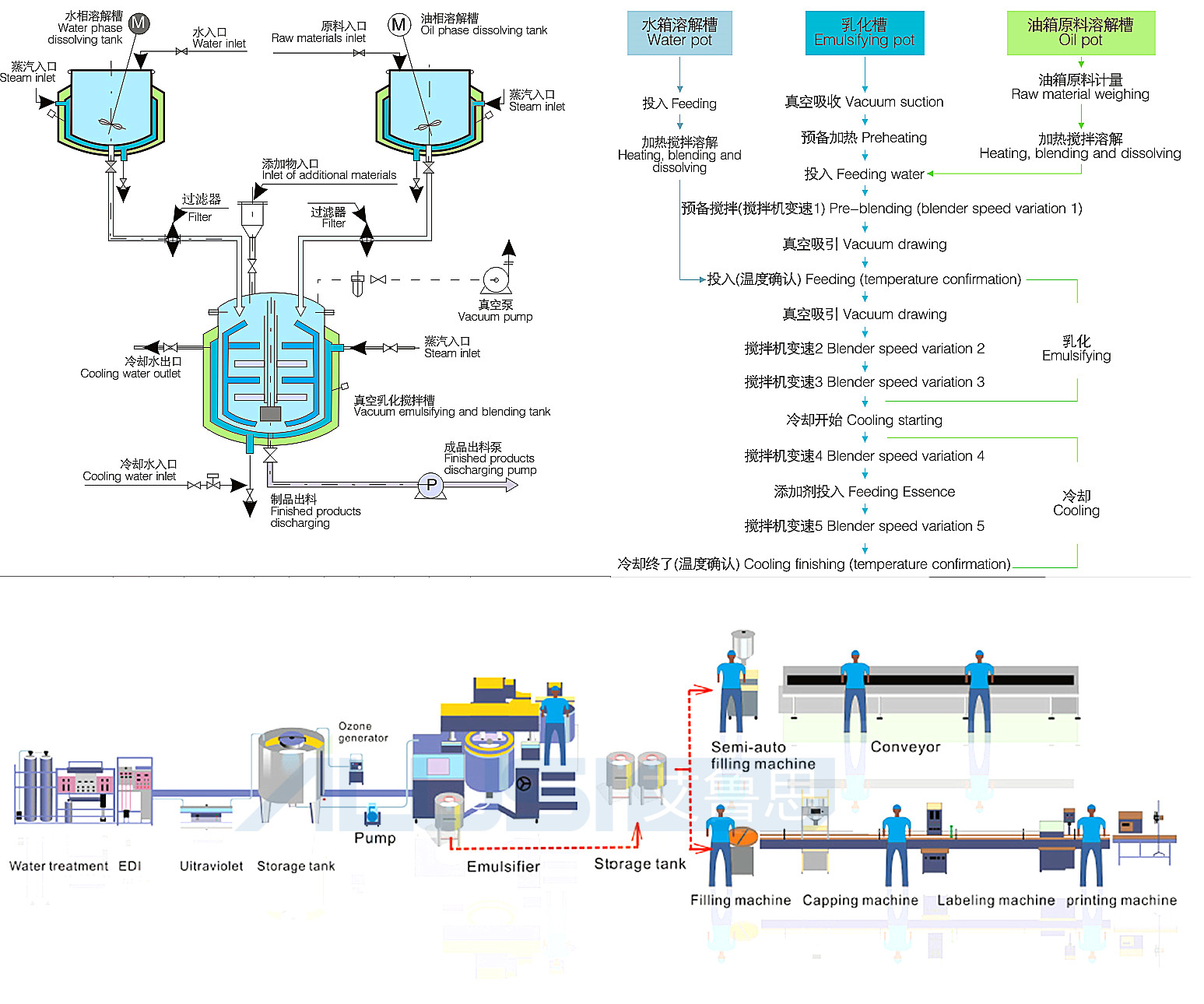

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

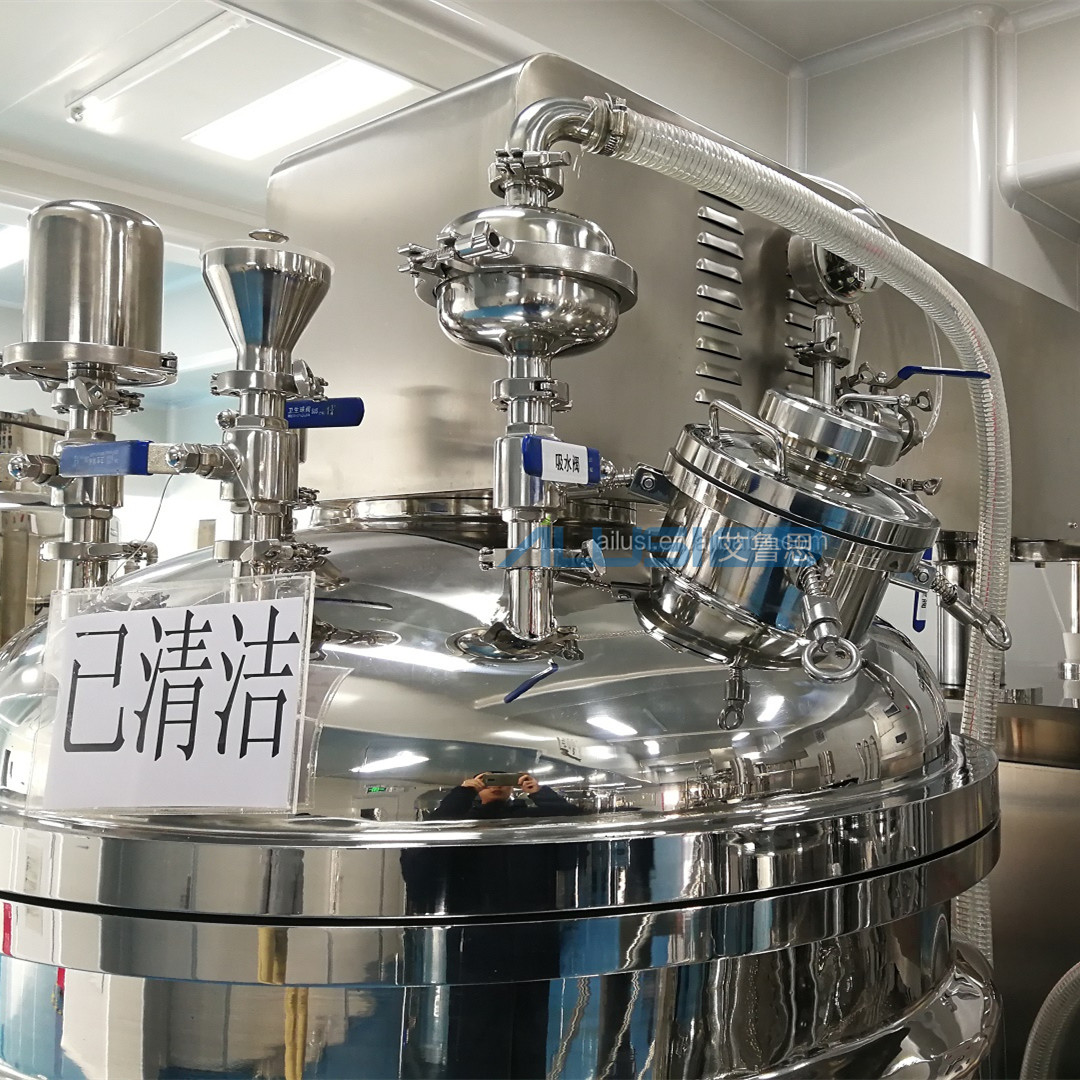

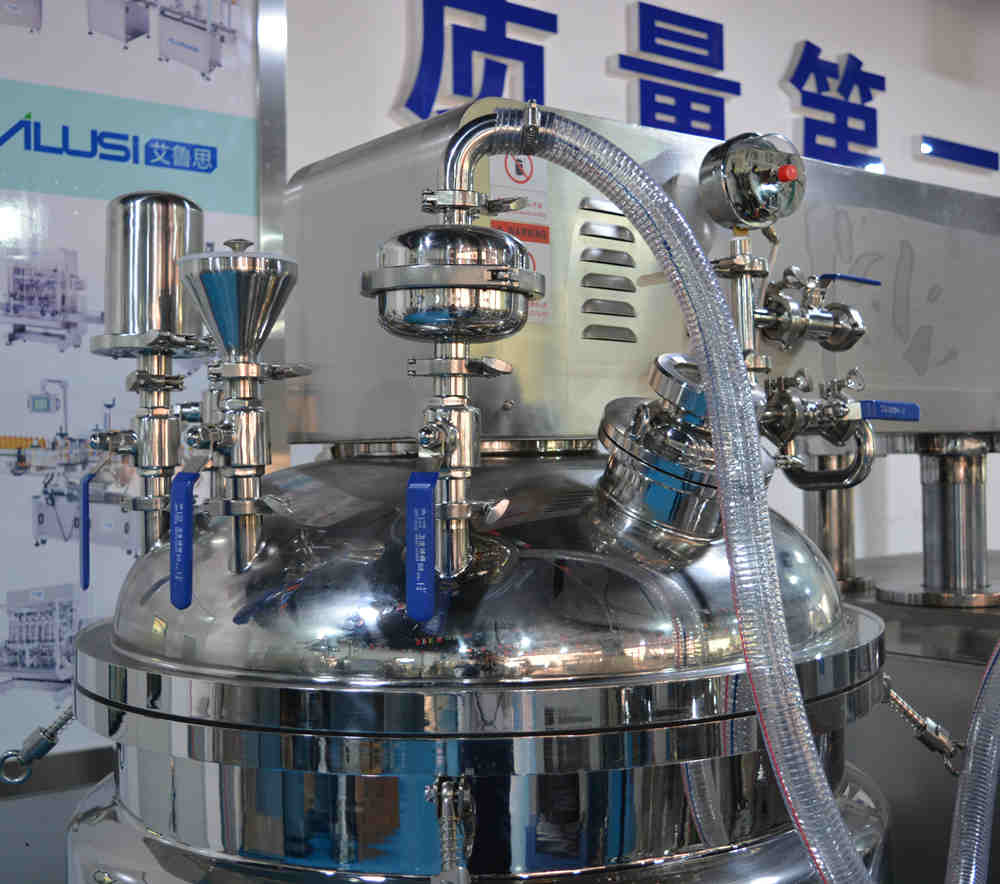

Lid

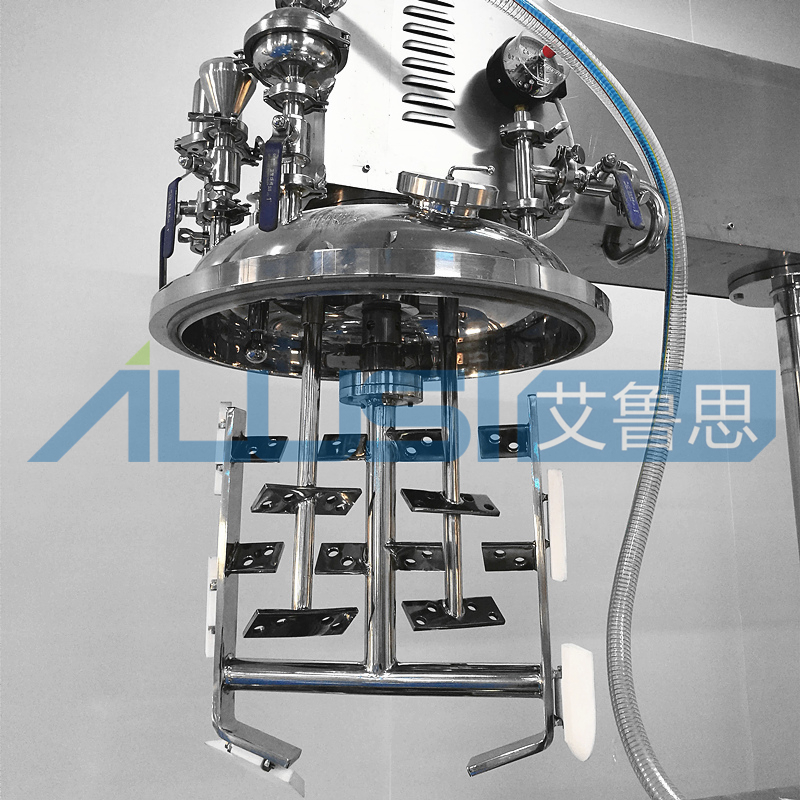

Mixer

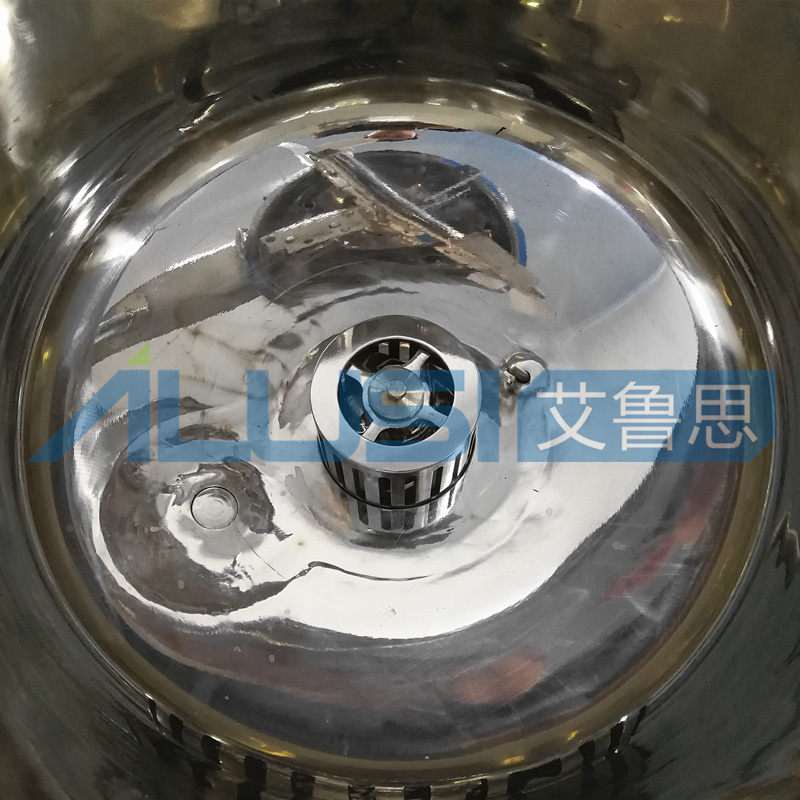

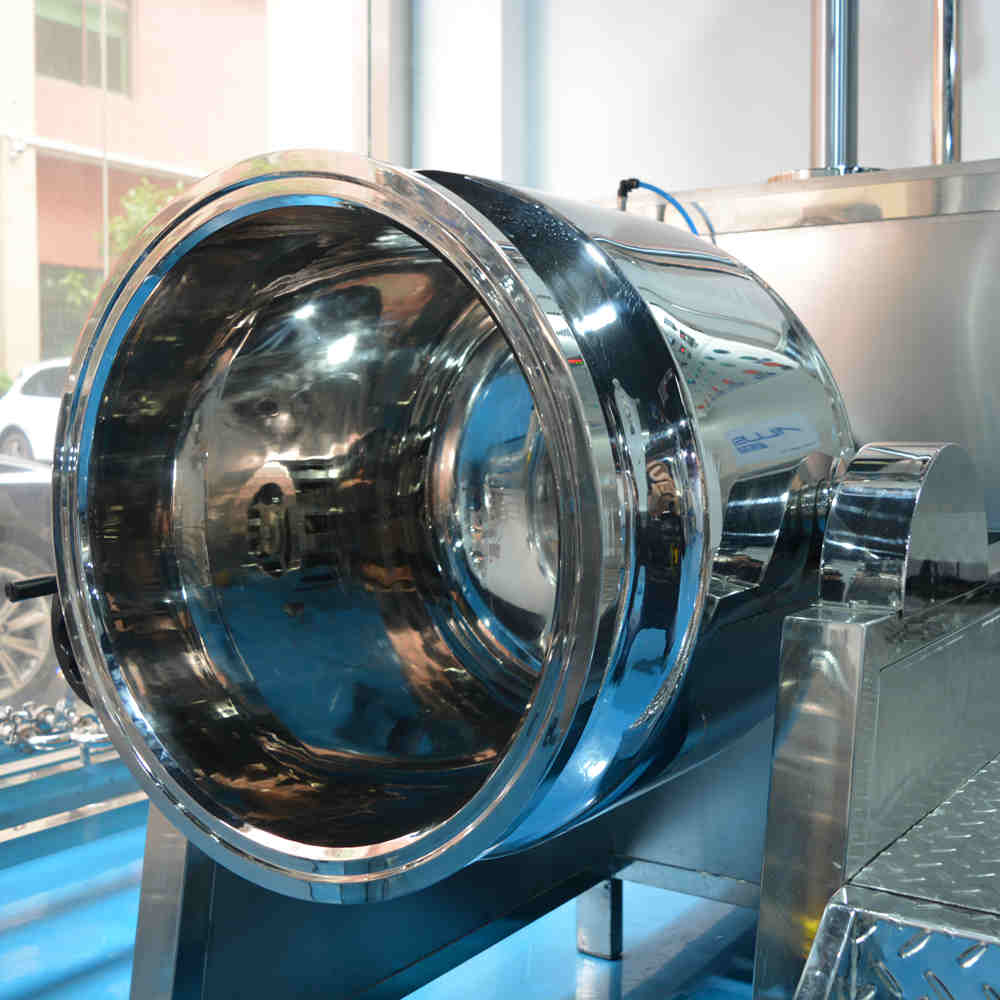

Inside of tank

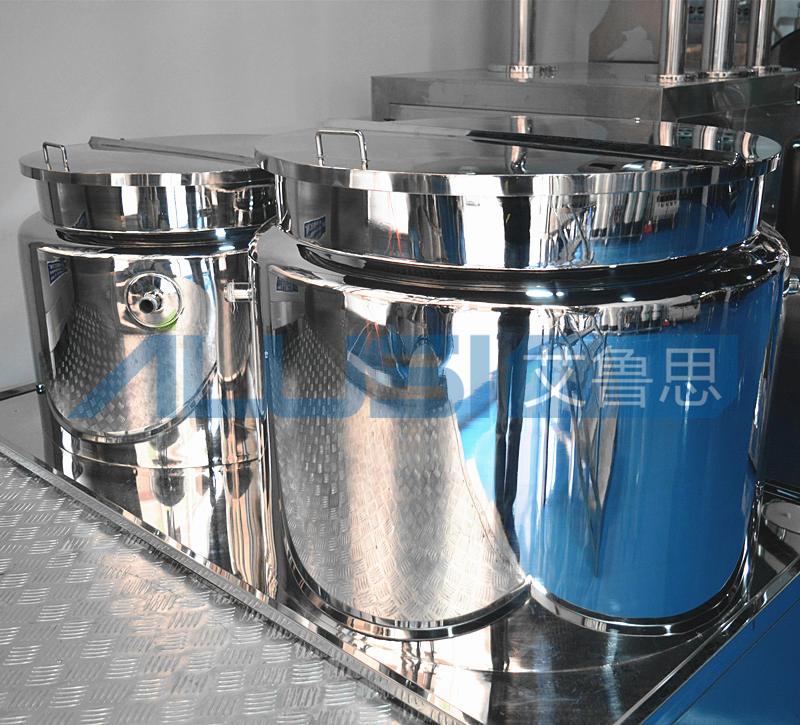

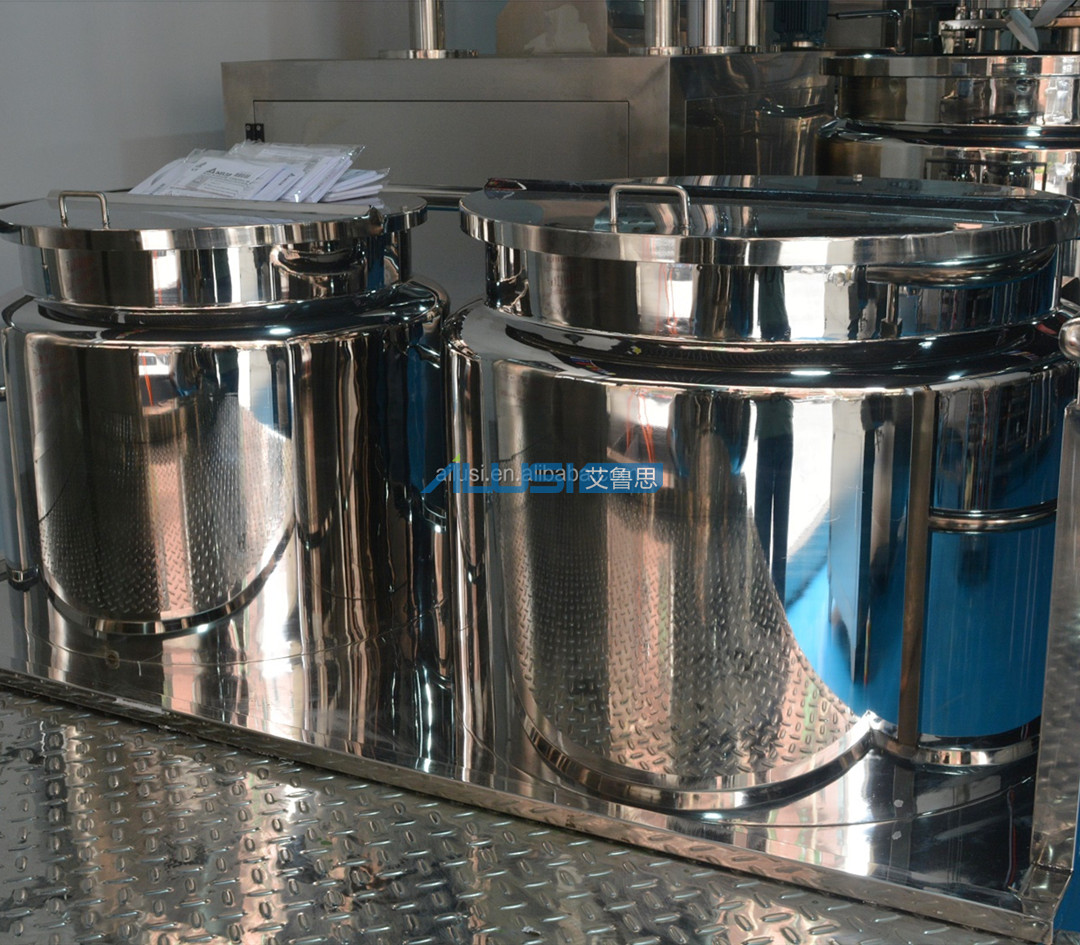

Water & oil tank

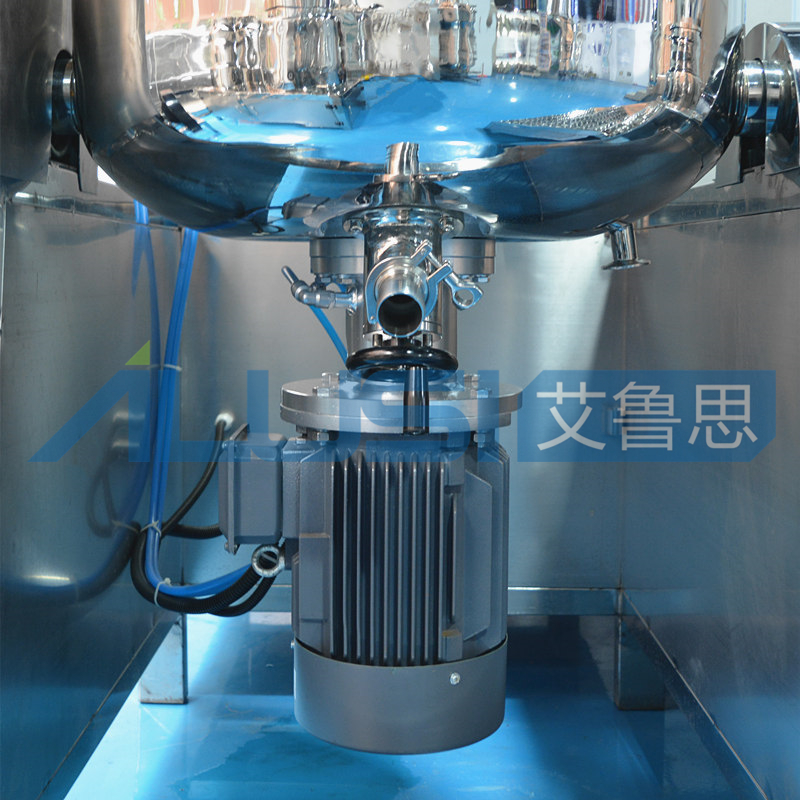

Bottom homogenizer

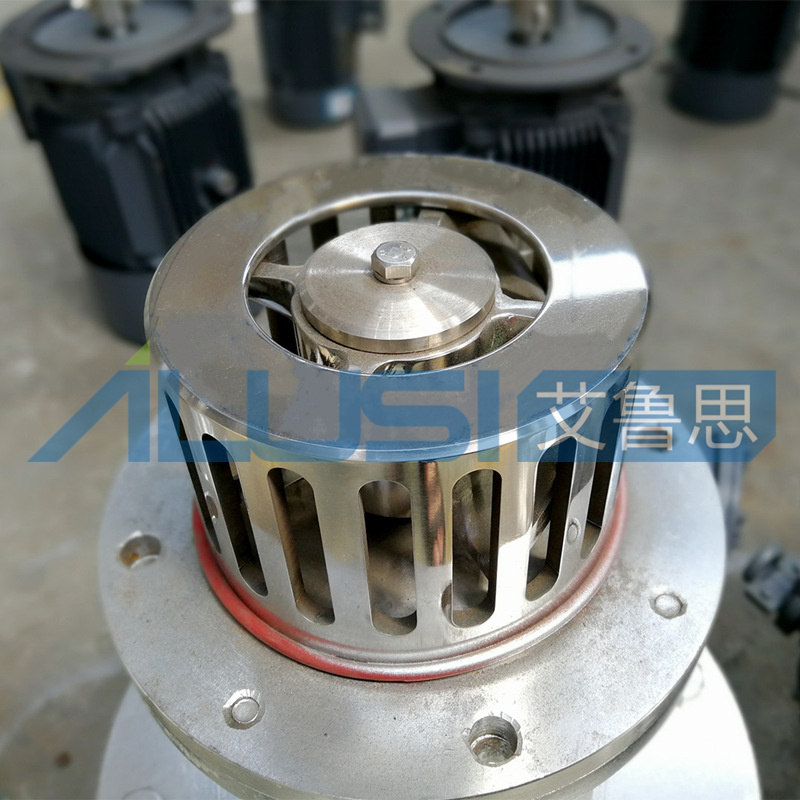

Homogenizer head

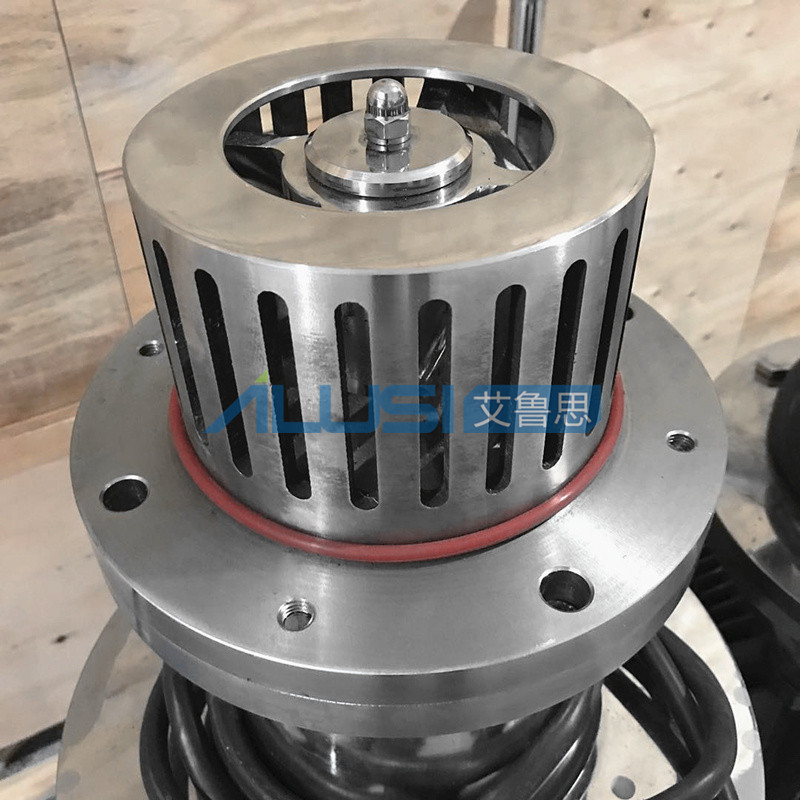

Homogenizer head

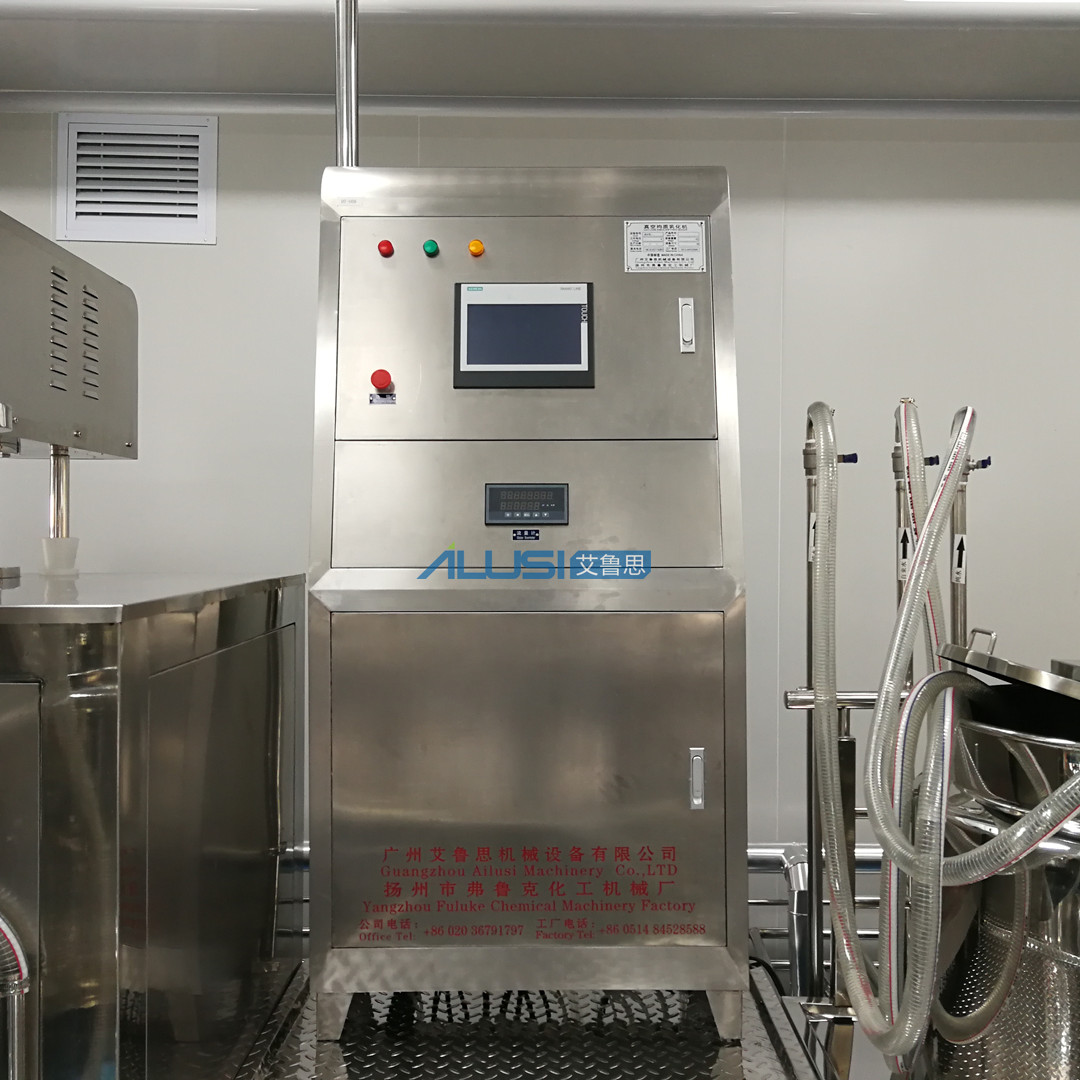

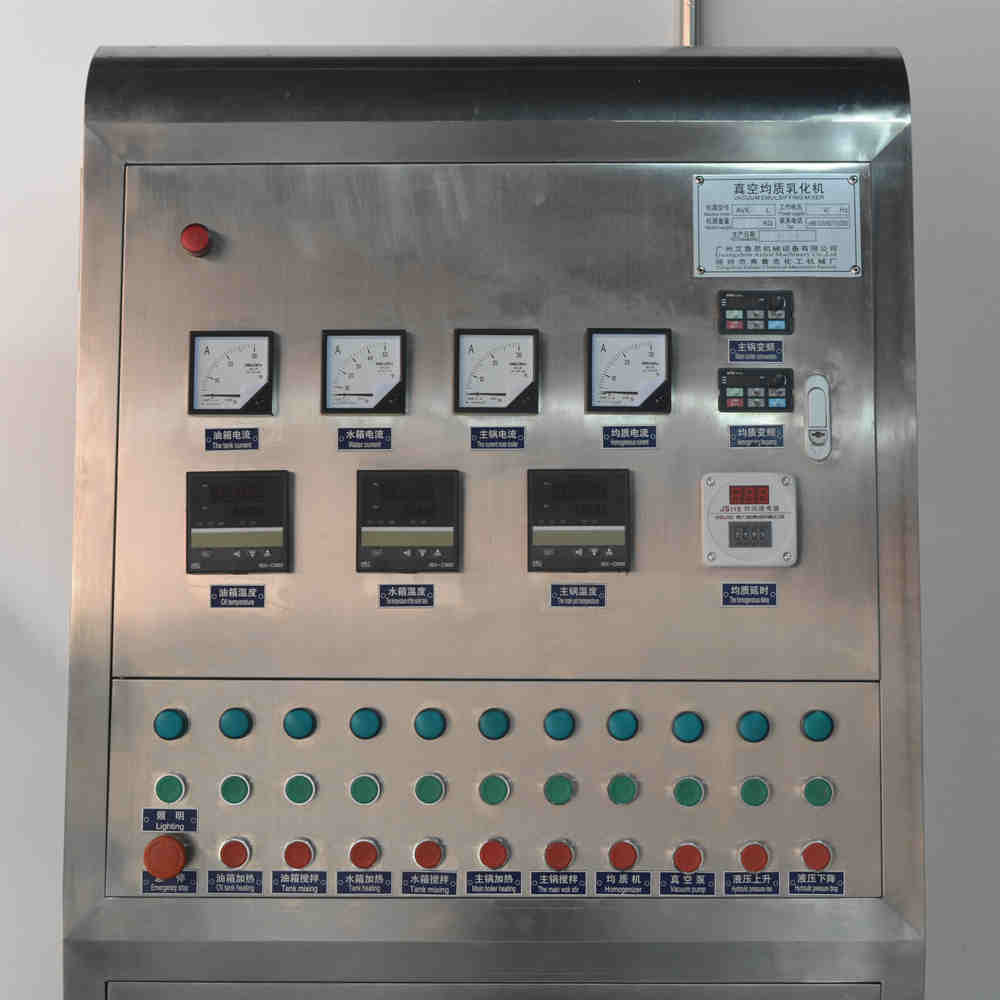

Control panel

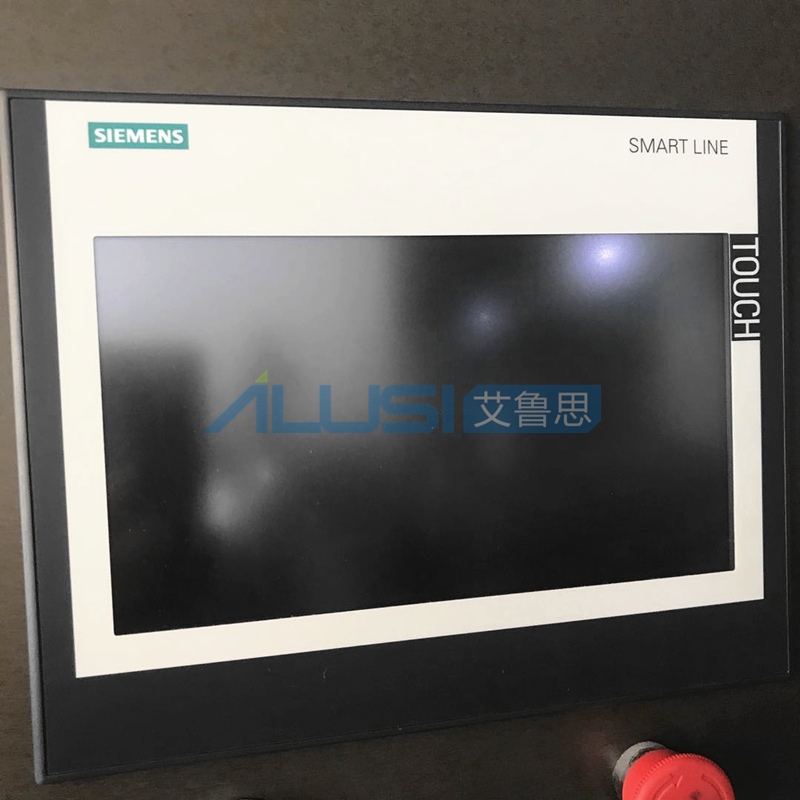

HMI (Option)

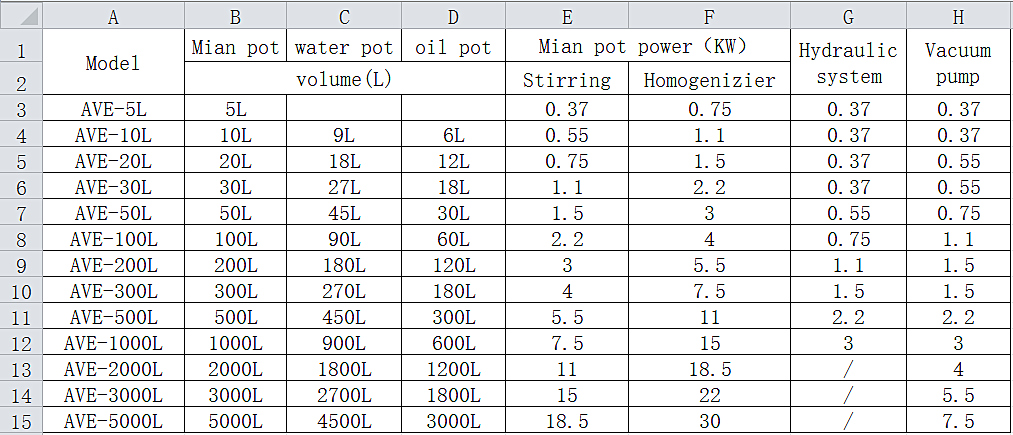

📊 Technical Parameters
| Model | AVE-500 |
| Working capacity | 500L |
| Heating method | Steam/electric |
| Mixing type | Upper frame oar scrape mixer |
| Mixing motor power | 5.5KW |
| Mixing frequency | 5.5KW |
| Mixing Speed | 0-65rpm |
| Homogenizer | Bottom homogenizer with frequency inverter |
| Bottom Homogenizer power | 11KW |
| Speed | 0-3000rpm (50Hz)/0-3600rpm (60Hz) |
| Hydraulic lifting system | 2.2KW |
| Vacuum pump | Water cycle vacuum pump, power: 3KW |
| Control method | Button control/ HMI |
| Frequency converter | Delta/Panasonic/Mitsubishi |
| Electrical components | Schneider/Delixi |
| Jacket | Double jacket, 3 layers |
| Tank materials | Inner layer 6mm/SUS316; Middle 6mm/SUS304; Outer 3mm/SUS304 |
🧩 High-Quality Components

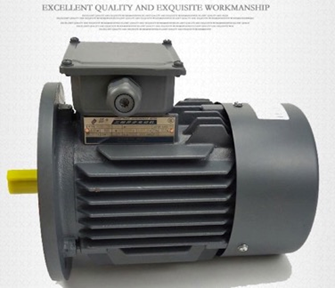

Siemens Motor
Reducer
Delta Frequency Inverter
Stator and Rotor
Rotor

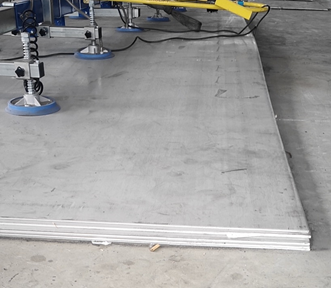

Materials SUS304 & 316L

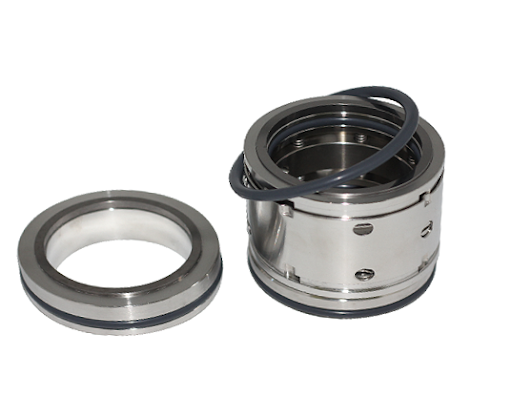

Burgmann Mechanical Seal
NSK Bearing
Omron Temperature Controller
Time Relay
Breaker
AC Contactor
Vacuum Pump
Hydraulic Column

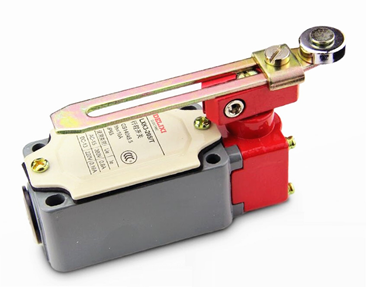

Limit Switch
Temperature Probe
Vacuum Meter
Safe Valve
🌐 Material Sources
📜 Certifications

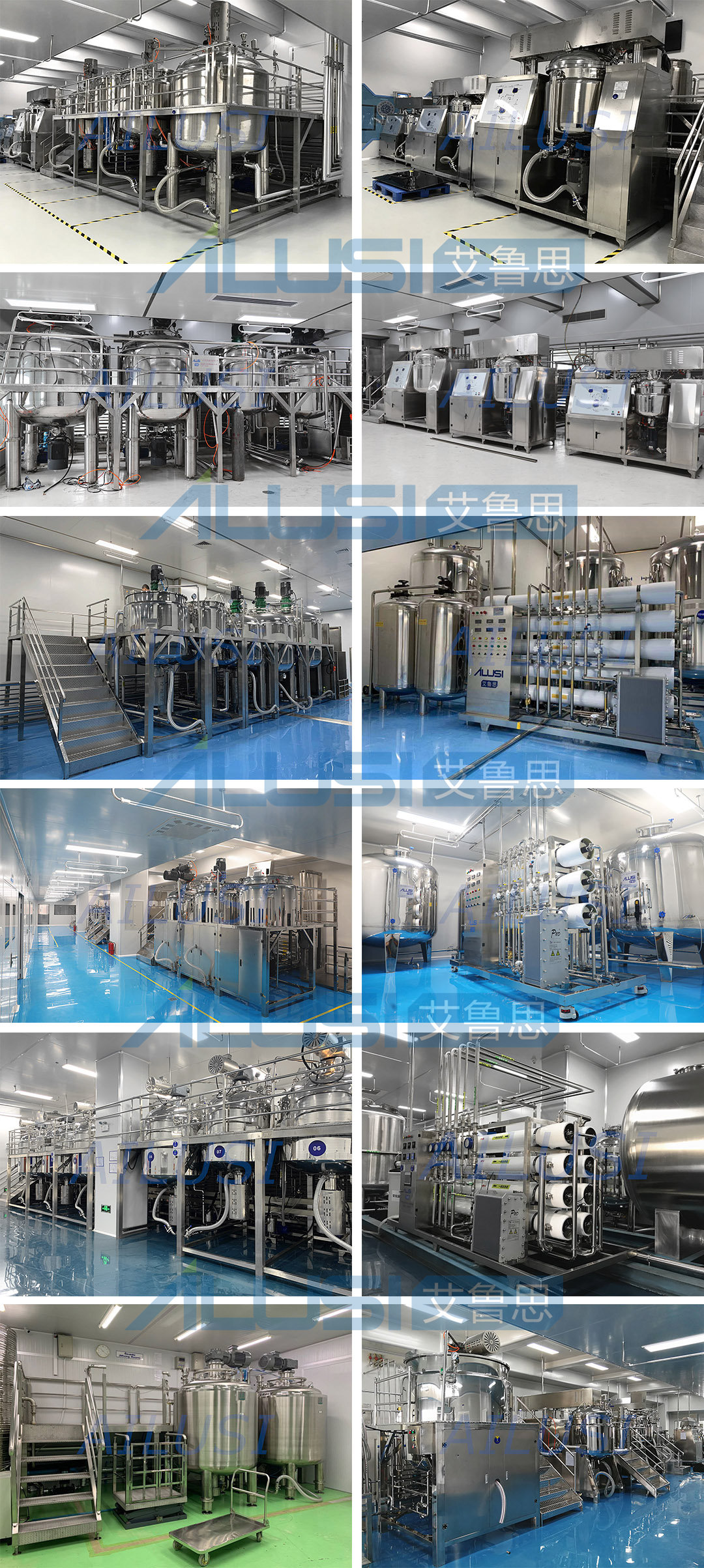

🏆 Successful Projects
📦 Packing & Delivery
The equipment is packed in imported wooden boxes. Transportation options include sea, air, express, and train.

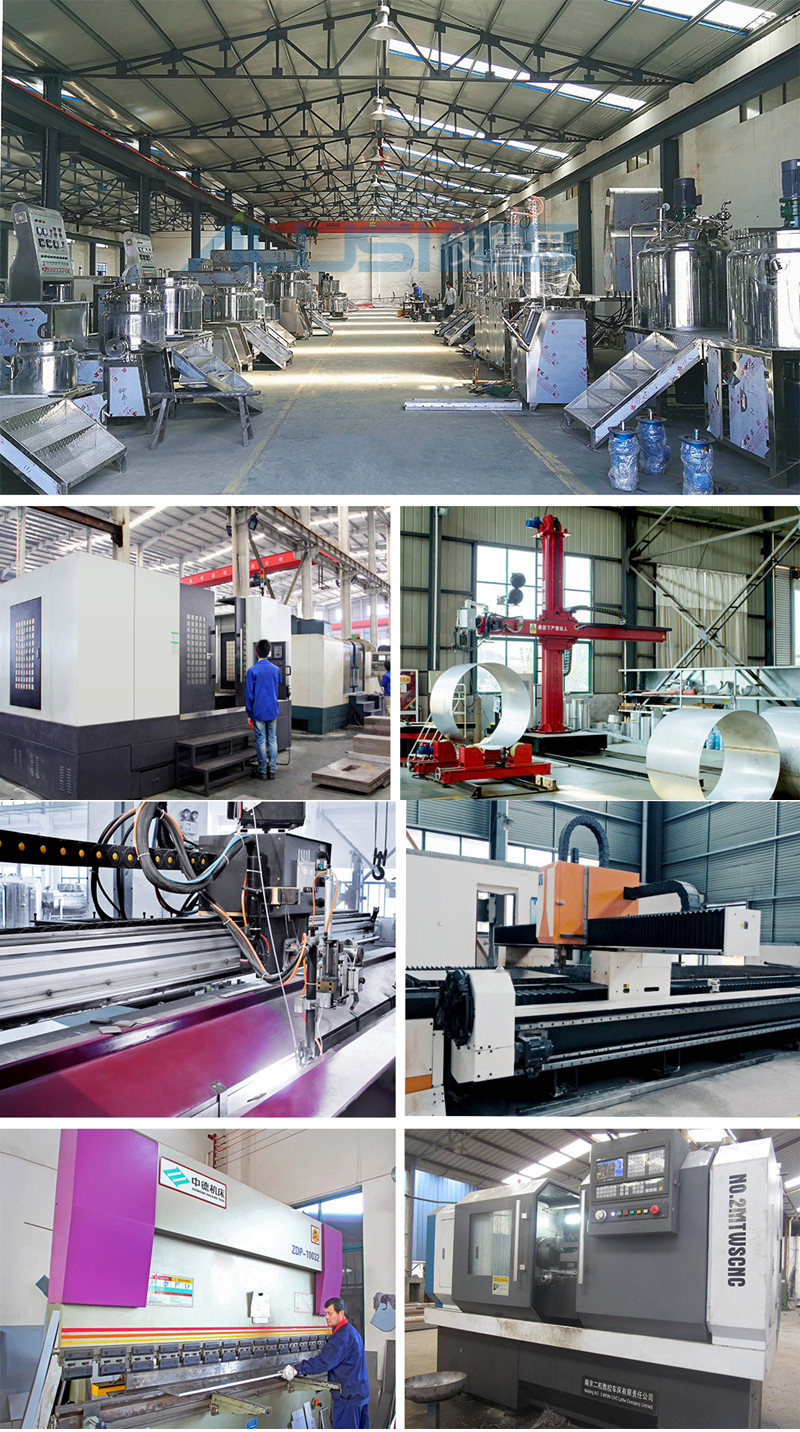

🏭 Professional Solutions
As a manufacturer of cosmetics, pharmaceutical, food, and chemical machinery, we provide complete solutions from factory layout design to full production line machine design, installation, and fixing.
❓ Frequently Asked Questions
What materials are suitable for this mixer?
The machine is ideal for creams, lotions, gels, balms, ointments, and toothpastes in the cosmetic, pharmaceutical, and food industries.
What is the mixing speed and homogenization capacity?
The mixing speed ranges from 0-65rpm, while the high-speed homogenizer reaches up to 3600rpm, achieving a fineness of 0.2-5um.
How is the temperature controlled during the process?
The unit features a three-layer jacketed tank with steam or electric heating options, integrated with high-precision Omron temperature controllers.
What are the main construction materials used?
The inner layer is made of SUS316L (6mm), the middle layer is SUS304 (6mm), and the outer layer is SUS304 (3mm) for maximum durability and hygiene.
Does the machine support vacuum operation?
Yes, it includes a water cycle vacuum pump and sync solenoid valves to eliminate bubbles during the emulsifying process.
What brands of electrical components are used?
We use high-quality international brands such as Siemens motors, Delta/Panasonic/Mitsubishi inverters, and Schneider/Delixi electrical components.
